| Type: |

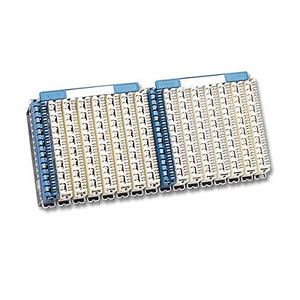

AS-MDF250K-C |
| Product Name: |
CONNECTION BLOCK |
| Origin: |
CHINA |
| Brand Name: |
ANSHI |
| Material: |
|
| size: |
|
| Safety/Quality: |
ISO9001 & CE |
|
 |
|
|
|
| |
|
| |
|
| |
1.Using 16 pieces of 8 line-pairs module could compose 128 line-pairs
terminal block, which is used for horizontal rows of double-sided MDF.
2.Inner cable enters from module bottom distribution hook into the clamping reed
slot and is terminated in the front. Jump wire enters from the
module top distribution hook into clamping reed slot and is terminated
in the front.
3.Torsional Clamping Reed is applied for terminating wire, so the
connection is reliable. Both jumping terminal and cable terminal are
single-slot. Overall dimension: 152H x 250W x 76D (mm).
4.Main Technical Parameters:
1)Wire terminating contact resistance with terminal:
Standard value: R≤3mΩ, Practice value: R≤0.5mΩ
2)Contact resistance between reeds:
Standard value: R≤7mΩ, Practice value: R≤1mΩ
3)Isolation resistance: R≥1000MΩ
4)Electrical Strength:
During U = 1000V, t = 1min there is not arc strike..
5)Applicable to wire diameter: Φ = 0.4-0.6mm
6)Disconnect tensile: F≥25N
7)Clamping/de-clamping cycle life ≥ 200cycles
8)Fire-retardant Characteristics of Plastic parts:
Requirements of GB/T5169.7-1985-A grade are complied. |
| |
|
|
|
 |
|
