| Type: |
AS-MDFNT36-U |
| Product Name: |

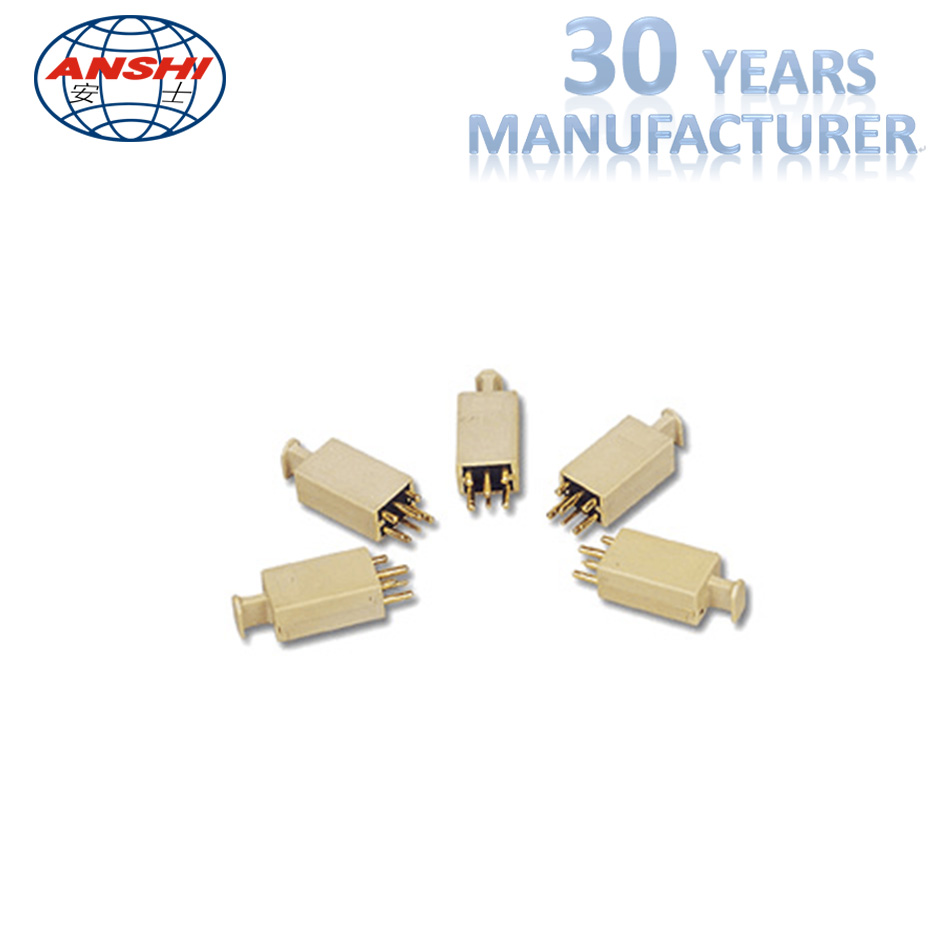

PROTECTOR UNIT |
| Origin: |
CHINA |
| Brand Name: |
ANSHI |
| Material: |
|
| size: |
|
| Safety/Quality: |
ISO9001 & CE |
|
 |
|
|
|
| |
|
| |
|
| |
1.Perfect and reliable over-voltage and over-current protection with sound and light alarm, and self resulming fail protection.
2.The performance of anti-burn: PPT(UL94V-0) or anti-burn ABS(UL94V-0), combustibility achieved GB/T 5169.7-1985 standard
3.DC puncture voltage: 190-260V
4.Pulse puncture voltage: ≤800V(1KV/us voltage increasing rate)
5.Insulation resistance: 1000MΩ(between any two separable modules)
6.Normal temperature resistance: ≤22Ω(R≤2Ω(over-current protection) 7.Contact resistance: ≤3mΩ
8.Contact resistance between reeds: ≤7mΩ
9.Normal temperature current: I=falling from 500mA to 150mA t<20s
I=falling from 1A to 500mA t<1.3s
I=falling from 2A to 500mA t<0.5s
I=falling from 3A to 500mA t<0.2s
10.Sactive time: I=2.5A t<15s(220V/AC)
11.resistance to voltage: ≥1000V(AC)/1min without breakdown or arc |
| |
|
|
|
 |
|
