| Type: |

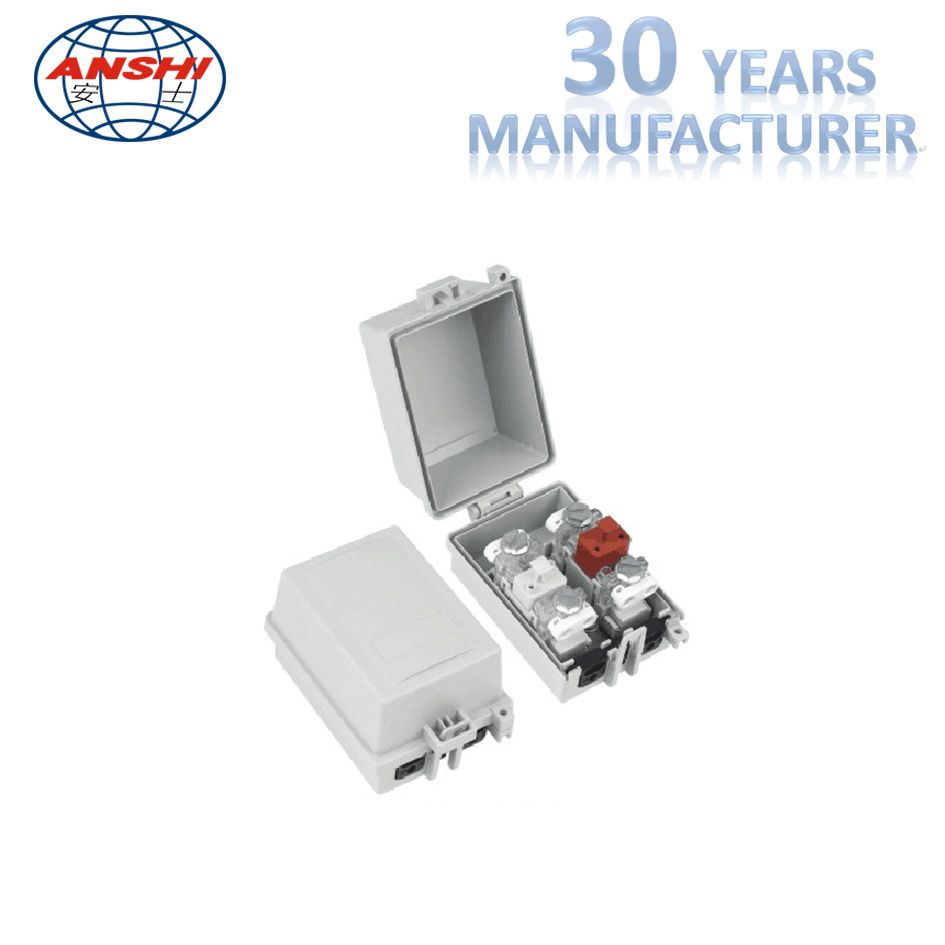

AS_STB-BOX-2 |
| Product Name: |
2 pair distribution box for STB mokule |
| Origin: |
CIXI ANSHI |
| Brand Name: |
AN SHI |
| Material: |
|
| size: |
H*W*D=144.5*96.5*56 |
| Safety/Quality: |
ISO9001 & CE |
|
 |
|
|
|
| Â |
|
| Â |
|
| Â |
Drop wire connector: Gauge range: 0.4 to 1.2 mm diameter; Insulation diameter: 5 mm maximum diameter
Pair connector:Gauge range: 0.4 to 1.2 mm diameter; Insulation diameter:3 mm maximum diameter
Current conducting capacity£º20 A, 10 A per conductor for 10 minutes at least without causing deformation of the module.
Insulation resistance£ºDry atmosphere: >1012 Ω; Damp atmosphere (ASTM D618, procedure F): >1012 Ω;
Salt fog (ASTM B117): >1010 Ω: Immersion in water (15 days in 3% NaCl solution): >1010 Ω
Contact resistance: Rmaterial + Rbridge contacts + Rwire contacts: <10 m Ω
Increase in contact resistance£ºAfter climatic tests: <2.5 m Ω; After 50 reinsertions: <2.5 m Ω
Dielectric strength: >3,000 Vdc for 1 minute¡£
Mechanical characteristics:
Pair/drop wire housing screw: Special passivated direct + lacquered Zamac alloy.
Drop wire housing body: Transparent polycarbonate
Body: Flame retardant (UL94);fiber-glass reinforced;polycarbonate
Insertion contacts: Tinned phosphor bronze
Ground contacts: Cu-Zn-Ni-Ag alloy
Continuity contacts: Tinned hard brass
Lower sealant: Polymeric resin
Upper cable sealant: Silicone fluid
Pair/drop wire bearing cover: Polycarbonate
Plug-in module body: Flame retardant (UL94);fiber-glass reinforced£»polycarbonate
Plug-in module sealant: Gel
O ring: EPDM
Cable/drop wire membrane: Thermoplastic rubber
Box base and cover: Polycarbonate RAL 7035
Earthing assembly: Stainless steel
Grommet: EPDM
Plug-in module configuration;Continuity;230 V GDT
Note: if > 20 A up to 30 A is required, this is possible using a different GDT.
|
| |
|
|
|
 |
|
