| Type: |

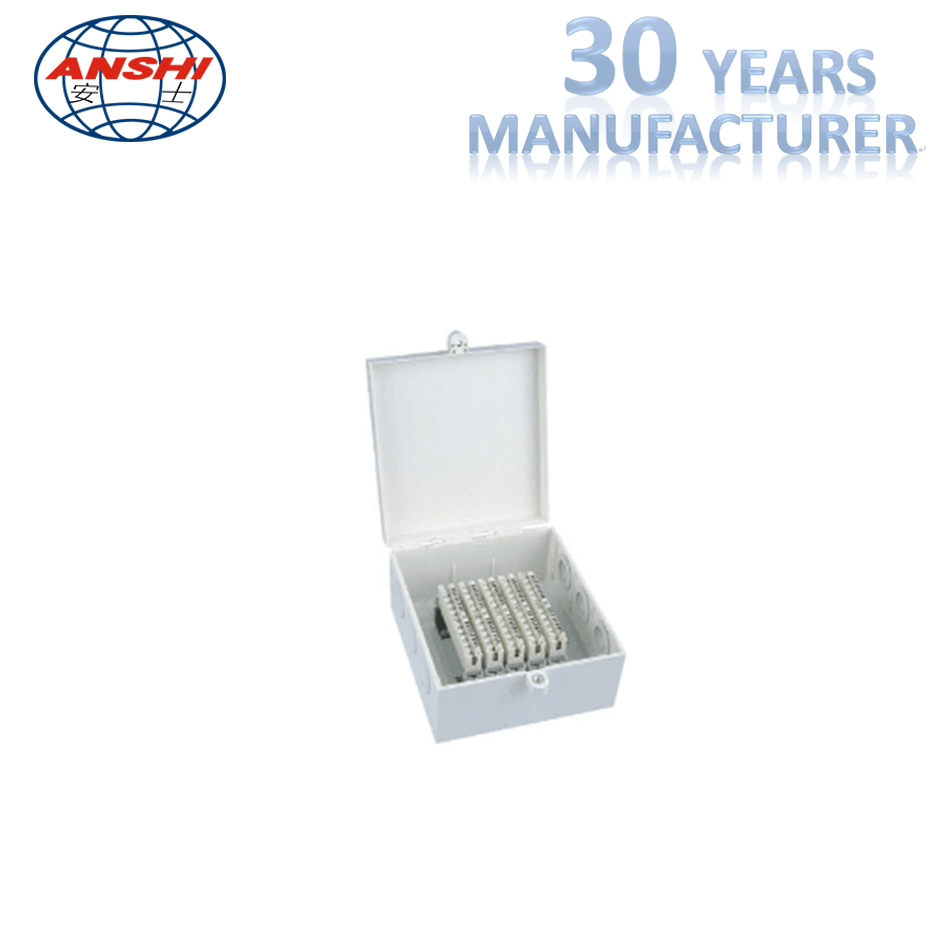

XL-026D |
| Product Name: |
Indoor distribution box |
| Origin: |
CIXI ANSHI |
| Brand Name: |
AN SHI |
| Material: |
|
| size: |
204*190*106 |
| Safety/Quality: |
ISO9001 & CE |
|
 |
|
|
|
| |
|
| |
|
| |
1.Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;
2.The modules are compatible with KRONE LSA-PLUS modules.
3.The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires
4.Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N ;
5.Internal diameter of connection wire: 0.4-0.6 mm
6.The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard ;
7.Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections ;
8.Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition ;
9.Intermediate resistance: no more than 3m ohm under standard examination condition ;
10.Dielectric strength: according to industry standard
11.Specification: 50pairs ,every specification has connection or disconnection types
12.Life: durability 200 cycles |
| |
|
|
|
 |
|
