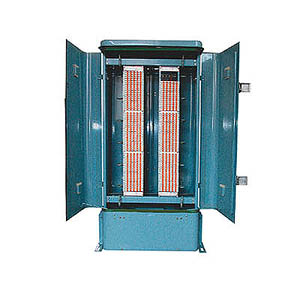

Used for the connection and disposition between telephone network cable trunk and telephone distribution
1.25 pair Rotate-clamping connection module
2.times of use :connection column >200times, pipe cap:>50 times
3.connecting and cutting off unnecessary wires by using screw-driver to rotate 90°clockwise in plastic cap slot.
4.Each connection splice is applied with dampproof and anti-oxidization protection preparation, Two colors of blue and green are available,
5.box is made of stainless steel and galvanized materials, Connection ring is made of round steel sprayed with plastics, it looks nice in shape, with powerful tensile strength, it doesn`t break.
6.Environment condition: -20-60 degree Celsius;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa;

7.Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N ;Internal diameter of connection wire: 0.4-0.6 mm
8.The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard;
9.Insulated resistance: under standard atmospheric pressure,Insulated resistance no less than 1,000M ohm between the two disjunct connections ;
10.Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition;
11.Intermediate resistance: no more than 3m ohm under standard examination condition;
12.Dielectric strength: according to industry standard
