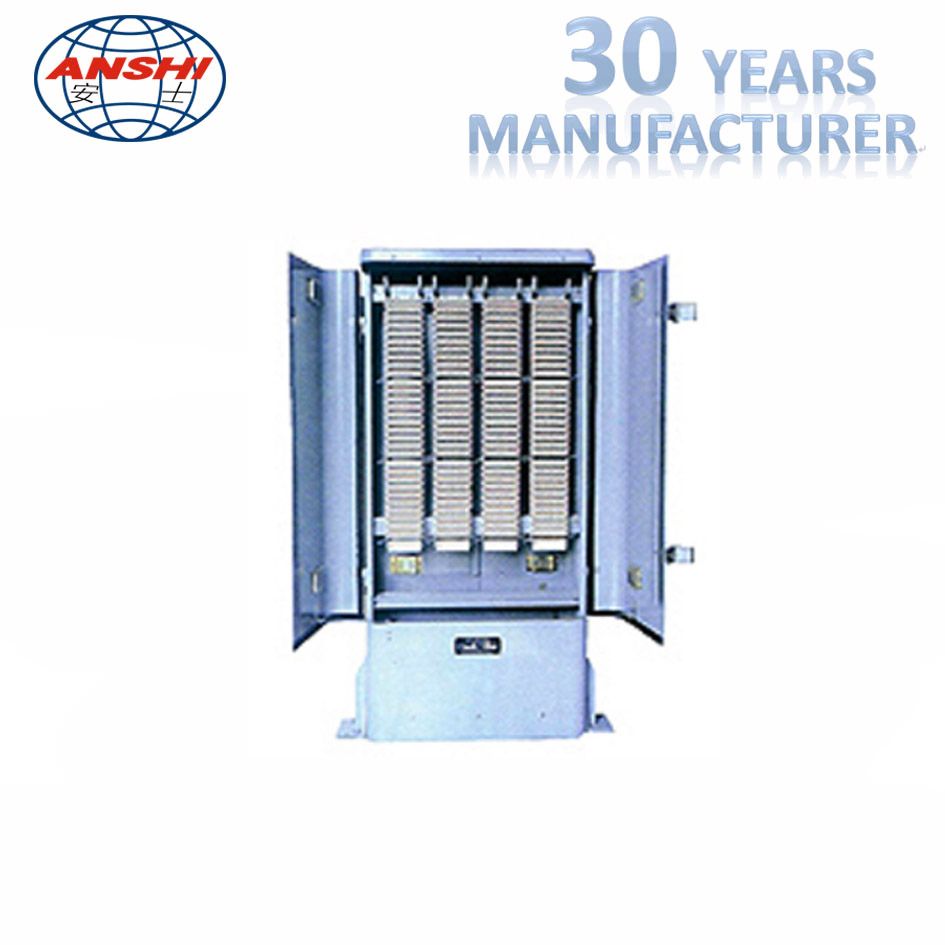

Used for the connection and disposition between telephone network cable trunk and telephone distribution; 10 pair Clamp connection module.The modules are compatible with KRONE LSA-PLUS modules.
1.times of use :>200times;
2.box is made of stainless steel and galvanized materials, Connection ring is made of round steel sprayed with plastics, it looks nice in shape, with powerful tensile strength, it doesn`t break.
3.Environment condition: -20-60 degree Celsius £»Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa;4.Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N ;Internal diameter of connection wire: 0.4-0.6 mm
5.The performance of anti-burn: PBT(UL94V-0)or anti-burn ABS(UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard;
6.Insulated resistance: under standard atmospheric pressure,Insulated resistance no less than 1,000M ohm between the two disjunct connections;
7.Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition ;

8.Intermediate resistance: no more than 3m ohm under standard examination condition ;
9.Dielectric strength: according to industry standard
