| Type: |
XL-4017C |
| Product Name: |

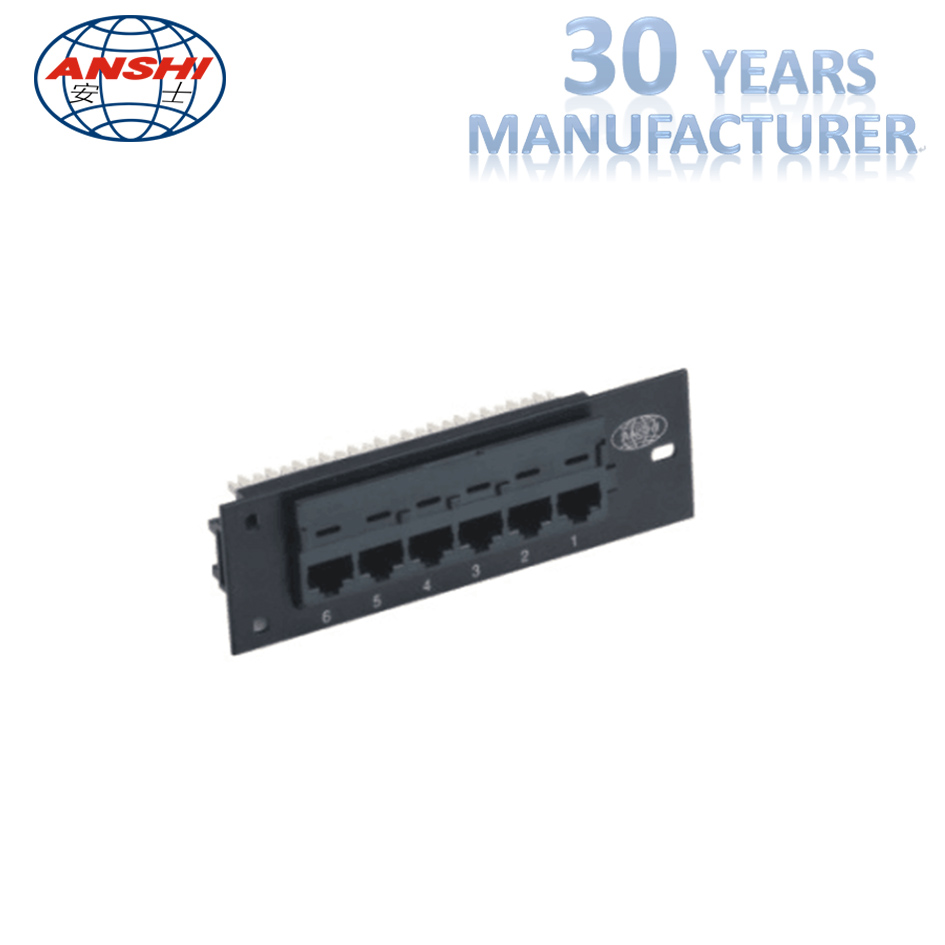

6 Port Patch Panel |
| Origin: |
CHINA |
| Brand Name: |
ANSHI |
| Material: |
|
| size: |
130*1U |
| Safety/Quality: |
ISO9001 & CE |
|
 |
|
|
|
| |
|
| |
|
| |
1.With Cat5e keystone modules used for 19"cabinet ,Complete metalation and reed construction, modularization design
2.IDC: phosphor bronze and silver plating (20-50uinch), suitable diameter 0.4-0.6mm, durability 200 cycles ;
3.Contact pin: phosphor bronze and gold plating (20-50uinch), mating durability not less than 750 cycles; 4.Anti-burn performance: plastic part made from PPO and PC, meeting the international standard;
5.Intermediate resistance: no more than 2.5m ohm in normal atmosphere pressure (not including bulk resistor);
6.Insulated resistance: no less than 1,000M ohm in normal atmosphere pressure
7.The intensity of anti-currency: DC 1,000V (AC,700V);No puncture and flash-over phenomenon in one minute. Accord with industry standard; 8.Label: clear label to ensure easy to manage;
9.Type: unshielded ,6 ports.
10.Standard: designed by international ISO/IEC11801 and TIA/EIA568; |
| |
|
|
|
 |
|
