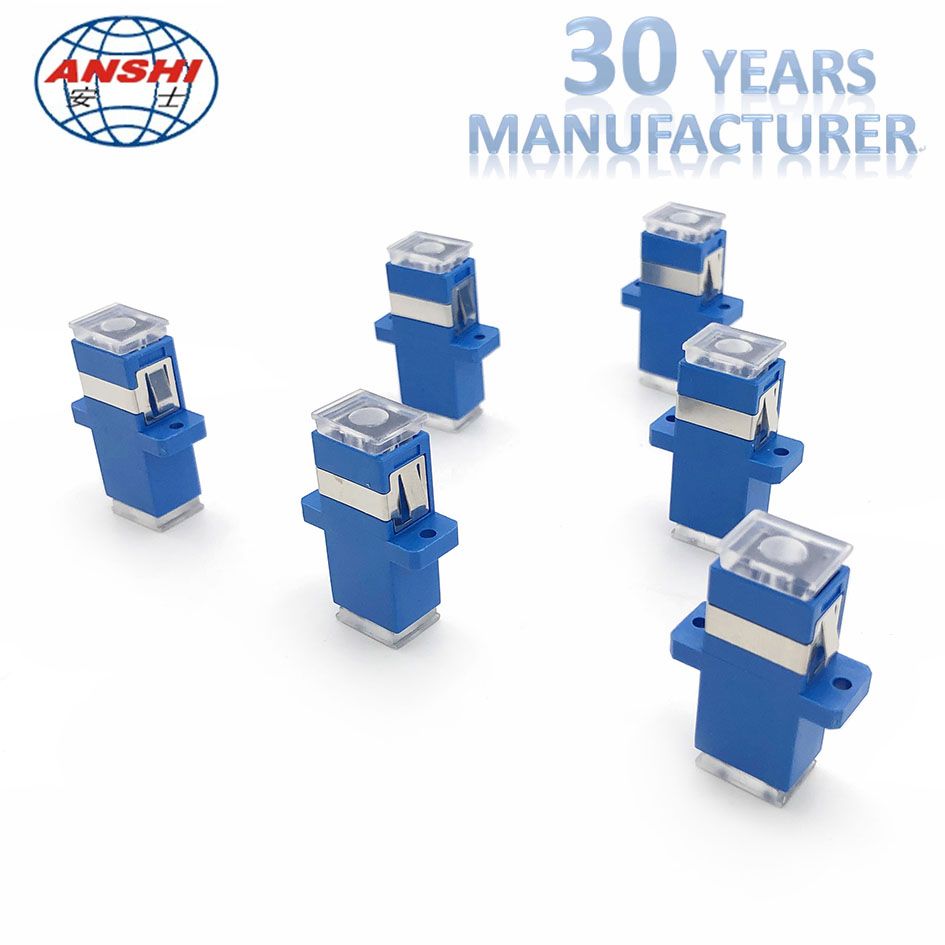

Adapter SM SC/UPC simplex with translucent dust cap Fiber Optic Coupler
Product Description
Adapters for use in fiber optic termination uts and distribution frames. The alignment sleeve, inside the adapter, guarantees high precision alignment of two fiber optic connectors. Different types of adapters are available for different kinds of patchpanels.
| ameter | Unit | LC, SC, FC, ST | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °C | -40~75 | |||
| Storage Temperature | °C | -45~85 | |||
1. Features:
Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing
Telcordia style boots
Free-floating ceramic ferrule
Zirconia sleeves or Phosphor bronze sleeves
D-shaped easily installs into panel mount
RoHS compliant
2. Applications:
Fiber Optic Telecommunications
LAN (Local Area Network)
FTTH (Fiber To The Home)
CATV&CCTV System
High speed transmission systems
Fiber optic sensing
Industtial, Mechanical and Military
