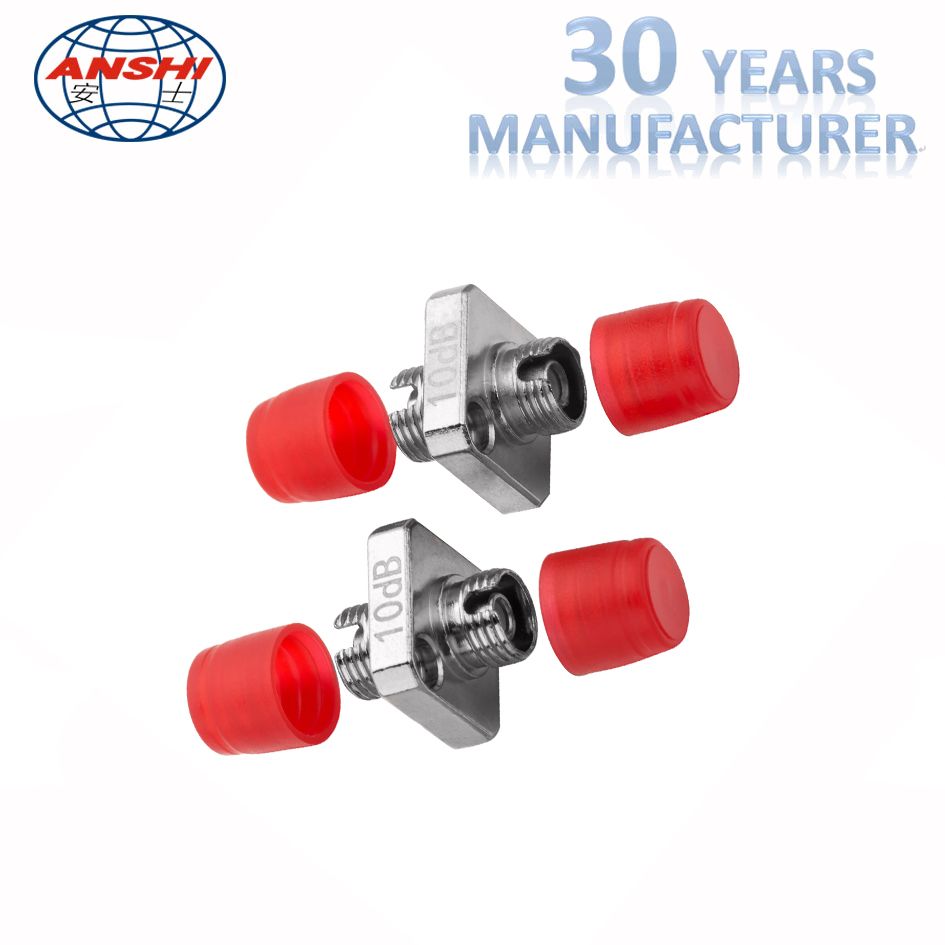

FC/UPC Fiber Optic Attenuator

https://www.anshitelecom.com/upfiles/20200216154245679-main-s.jpg
AS-SJQ-FCUPC
Product Name:

FC/UPC Fiber Optic Attenuator

  • Fiber Optical Attenuators:
    Multimode Fiber Optical Attenuators are used in fiber optic communications to reduce the optical fiber power by a certain level.The most commonly used type is female to male plug type fiber optic attenuator.It has the optical fiber connector at one side ,and the other side is a female type fiber optic adapter,fiber optic attenuator name is based on the connector type and the attention level .5dB fiber optic attenuator means this attenuator use FC fiber optic connector ,and attenuation value is 5dB .



    Features:
    High Precision Fiber Optical Ceramic Ferrules
    Snap in body for fast mating and de-mating
    Highly reliable physical contact connectors
    Accurate Attenuation
    850nm Attenuation for Multimode 50um and 62.5um

    Attenuated fiber with good performance

    Stable performance and high reliability



    Specifications:

    Return Loss

    <-50dB

    Attenuation Tolerance 1~5dB

    +-0.5

    Attenuation Tolerance 5~30dB

    +-10%

    Single Mode Wavelength(nm)

    1310 and 1550nm

    Multimode Wavelength(nm)

    850nm and 1310nm

    Oprating Temprature

    -40C to +80C

    Compliance

    RoHS

    Connector Body Color

    Blue(SM) or Beige (MM)
