AS-MOC144

Product Name:

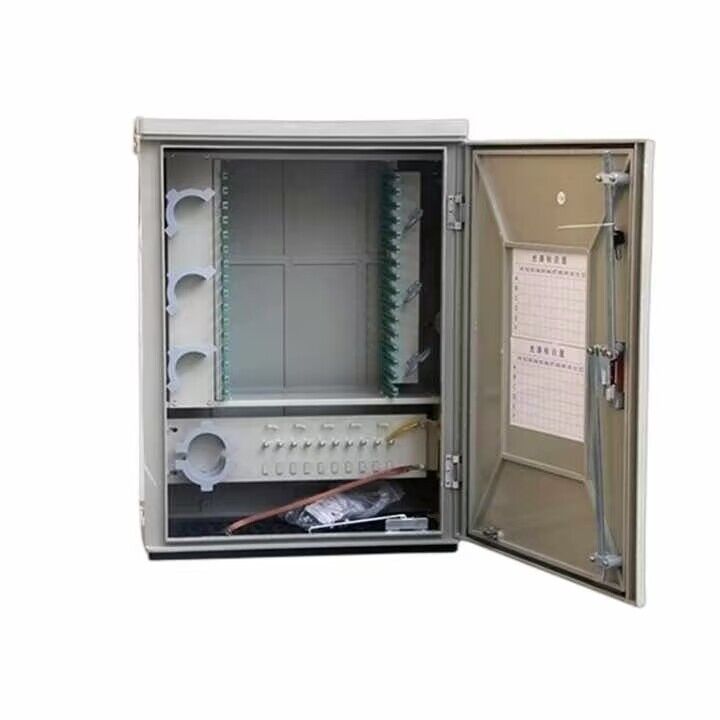

144 cores 288 fibers wall/pole mount cabinet

Product details

Product name	144 cores 288 fibers wall/pole mount cabinet
Pre-Terminated Connector	LC, SC, FC, ST
Polished	UPC or UPC
Fiber Mode	SM/MM
Fiber Count	144 or 288 Fibers
Size	750550310
Jacket Color	Grey
Jaket Material	SMC Or Stainless steel
Warranty	Limited Life
Application	FTTH Solution
Product Keywords	Fiber Distribution Hub,Fiber Distribution Hub Pole,Fiber Distribution Hub 144 Fiber

connecting trunk and distributing optical fiber cable.
capability of splicing, storage, and fiber cable distribution.
Fiber optic cabinet, max up to 12/24/48 trays, 12 ports one tray, total 144/288/576 ports, FC,ST or SC,LC adapter can be installed.
Optional cabinet material: SMC, stainless steel.
Effective:rain-proof, dust -proof,pests-proof

Technical parameters:

Operation Conditions:

Work Temperature: -40C~+55C

Relative humidity:≤95%(+30C)

Atmospheric pressure: 70KPa~106 KPa

Photoelectric property

Insertion loss: ≤0.2dB

return loss:PC≥45 dB UPC≥50dB APC≥60dB

Isolation resistance between high voltage protection place and frame ≥20000MΩ(DC500V)

withstand voltage between high voltage protection place and frame ≥3000V(DC)/1min (no puncture,no flashover)

Cabinet size:
