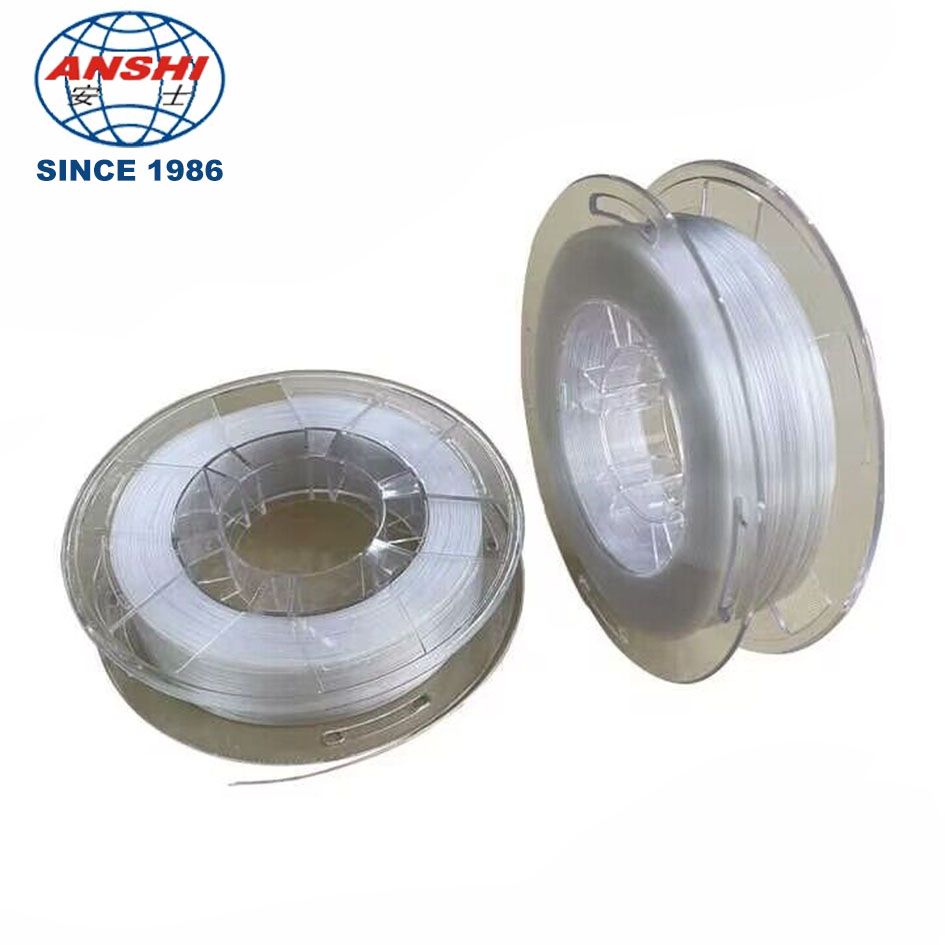

G657B3 FTTH Invisible transparent cable 0.9mm with PVC sheath installation Indoor fiber optic bare optical cable invisible cable

Home / Cable / Fiber Optic Cable / AS-ODF-CB-657B3-1C-1.2MM
https://www.anshitelecom.com/upfiles/20230922162537885-main-s.jpg
AS-ODF-CB-657B3-1C-1.2MM
Product Name:

G657B3 FTTH Invisible transparent cable 0.9mm with PVC sheath installation Indoor fiber optic bare optical cable invisible cable

  • Cable Parameter

    Item

    Specifications

    FiberType

    G657B3

    Fiber count

    1

    Semi-Loose tube Fiber

    Dimension

    850+/- 50 um


    Material

    PVC


    Color

    Transparent

    Mechanical and Environmental Characteristics

    Items

    Unite

    Specifications

    Tension (LongTerm)

    N

    50

    Tension (ShortTerm)

    N

    100

    Crush(Long Term)

    N/10cm

    80

    Crush(Short Term)

    N/10cm

    100

    Min. Bend Radius (Dynamic)

    mm

    10D

    Min. Bend Radius (Static)

    mm

    20D

    Installation temperature

    ℃

    -20 ~+60

    Operation temperature

    ℃

    -20 ~+60

    Storage temperature

    ℃

    -20 ~+60



FOB Reference Price:
