Descriptions:

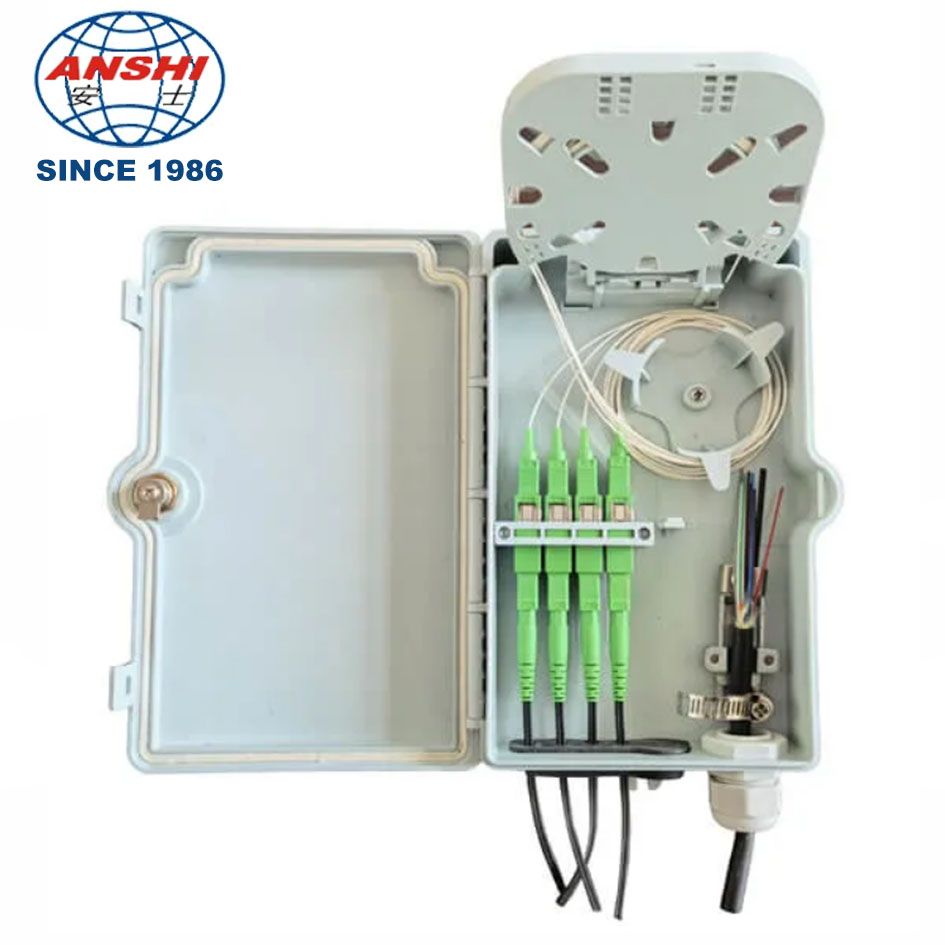

- Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
- The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
- AS-ODF-FDB-4B is designed for outdoor using with 1 port for round cable and 4 ports for FTTH drop cable.
- Its waterproof grade can match IP65.

Feature:

- Light weight, small size, save cost.

- Up to 4 FTTH drops.

- Suitable for wall and pole mountable.

- User familiar industry interface, using high impact plastic.
- Can accommodate 1X4 optical fiber splitter.

- 4 pcs of adapter port is fit with SC simplex adapter or LC duplex adapter.
- 1 inlet capacity for outdoor cable and 4 outlet ports for ftth drop cable.
- Space saving: Double-layer design for easier installation and maintenances:
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting and fiber distribution.
- Cable fixing units provided for fixing the outdoor optical cable.
- Protection Level: IP65
- Accommodates both cable glands as well as tie-wraps
- Lock provided for extra security
