AS-GPJ-HA-432-4-4

Product Name:

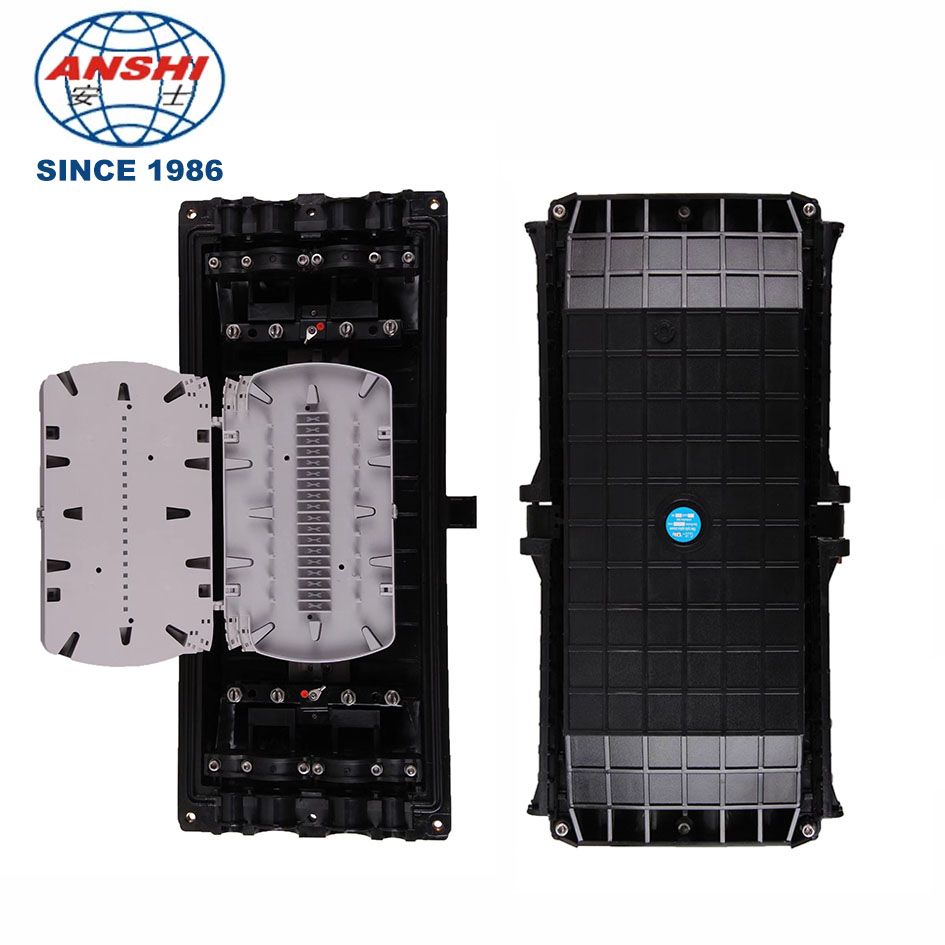

Fiber Optic Splice Closure, 4 Inlet 4 Out, Max. Capacity: 432 Cores

Parameters	Specification
Material	PC
Protection Rating	IP68
No. of Inlets and Outlets	8
Cable Diameter (mm)	4 holes: 8 ~ 20, 4 holes: 8 ~ 35, for big sealing ring; 4 holes: 8 ~ 20, 4 holes: 8 ~ 26, for small sealing ring
No. of Fibers/Tray	24 fibers/tray
Max. No. of Tray	9
Max. Capacity of Fibers	432 (without splitter)
Splitter Type	Blockless type PLC splitter without connectors
Max. Quantity per tray	2
Dimensions (mm)	590 (L) x 320 (W) × 215(H)

FOB Reference Price:

Features:
1. Advanced internal structure design
2. Easy to re-enter, No requires re-entry tool it
3. The closure is spacious enough for bending and storing fibers
4. Fiber Optic Splice Trays (FOSTs) are design in SLIDE-IN-LOCK and its opening angle is about 90°
5. The curved diameter meets with international standard
6. Easy and fast to increase and reduce FOSTs
7. Straight-through for uncutting and branching for cut
8. Lay adapters suit for FTTH and easy to operate
