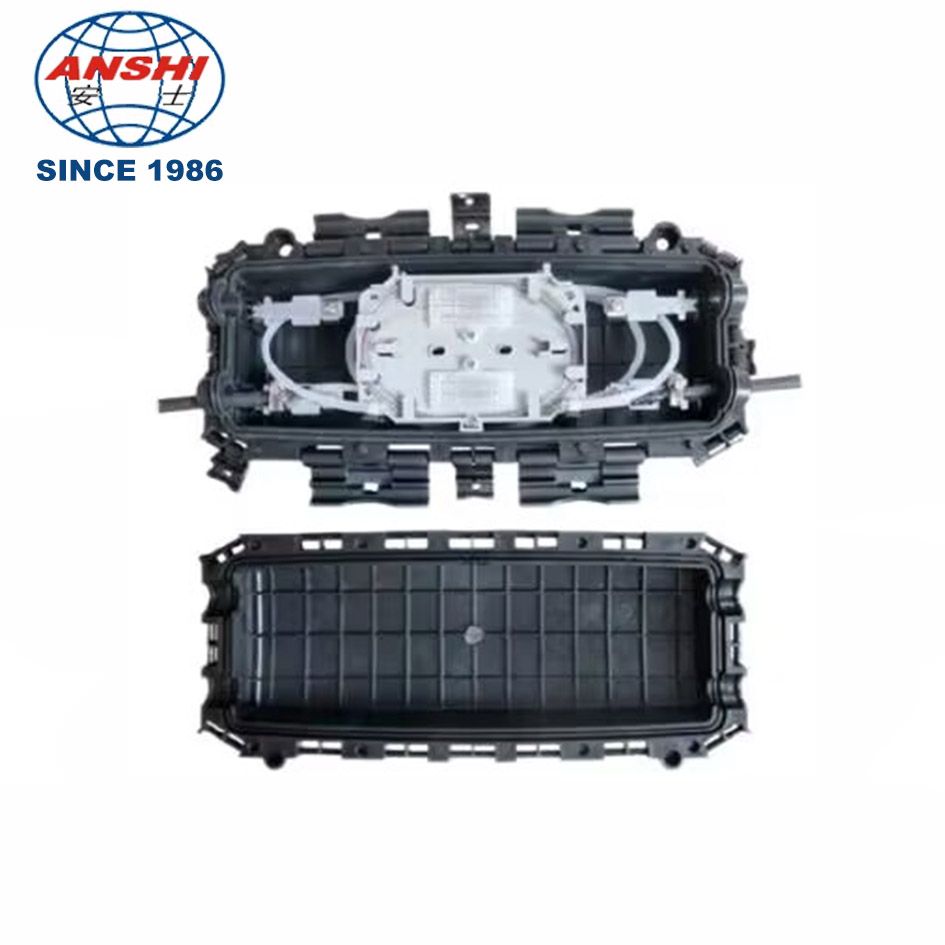

Fiber Optic Splice Closure, 2 Inlet 2 Out, Max. Capacity: 48 Cores
Working temperature: -40℃~±65℃
Atmospheric pressure: 70-106kPa
Axial tension: >1000N/ 1min
Stretching resistance: 2000N / 10 square centimeter (1 min)
Insulation resistance: > 2*104MΩ
Voltage strength: 15KV/1 min, no arcover or breakdown
Temperature cycle:-25℃~+60℃, inner pressure: 60(+5)kPa, cycle:10 times, the decrease of pressure can’t exceed 5kPa at room temperature
IP67
Four cable ports, two on each side
Max. Capacity: 48 C (Tray capacity: 24 fiber) for non-ribbon
No. of trays: 2 trays
Diamension:338*147*91mm (LxWxH)
Application cable dia. : dia. 6mm~16mm
Material: PP
Sealing way: Clay strip (material: Vulcanized Rubber Sealing)
A good mechanical property and resistance to weathering, firm and wearable
Applicable: Aerial
