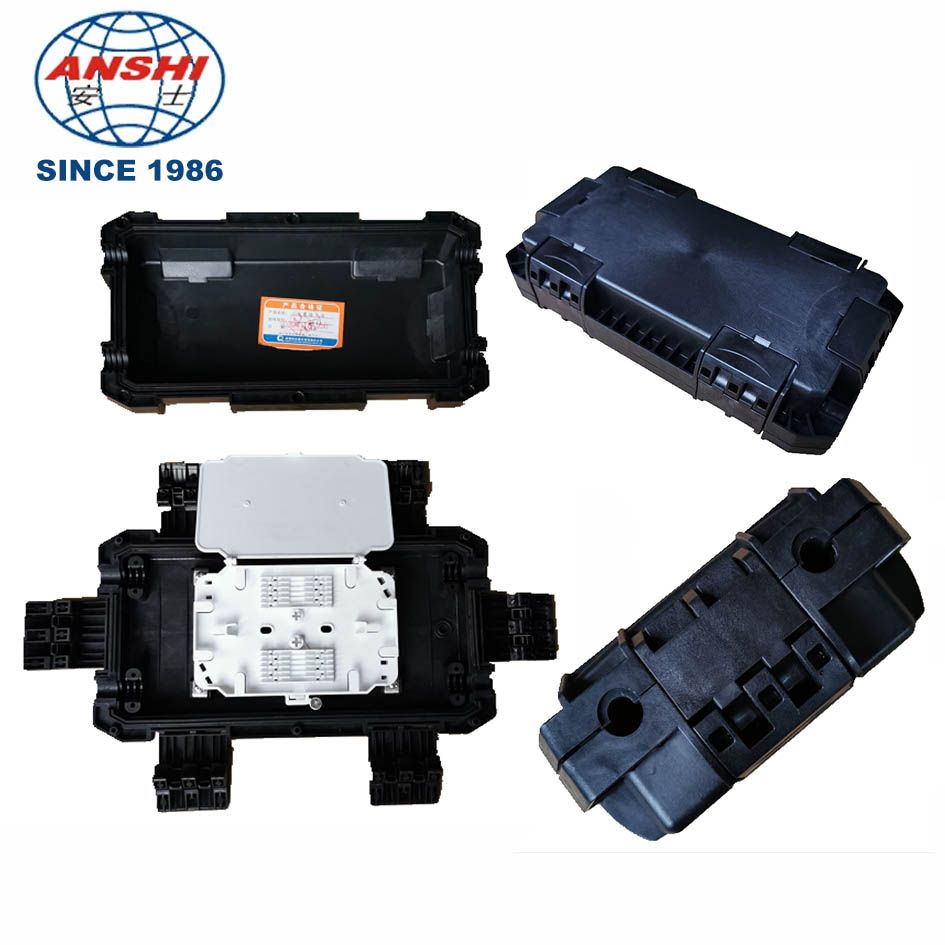

Fiber Optic Splice Closure, 2 Inlet 2 Out, Max. Capacity: 48 Cores
Spec.: AS-GPJ-HA-48-2-2C
Size mm:281.6*151.6*70.5
Tray Capacity: 24F/Tray
Max. Splice capacity: 48F
Ports number & available cable dia.: 2 inlets and 2 outlets for cable dia. Φ 6-12mm
Closure: Modified P.P. +GF
Tray:ABS
Metal: Stainless Steel
Working Temperature: -25 degrees centigrade~+60 degrees centigrade
Fiber Curvature Radius ≥35mm
Additional Loss after coiling in the closure :≤0.01dB
Bare fiber storage length in the splice tray :≥ 1m
Anti-Lateral pressure : ≥2000N/250px
Impact Resistance:≥20N.m
IP: 67
