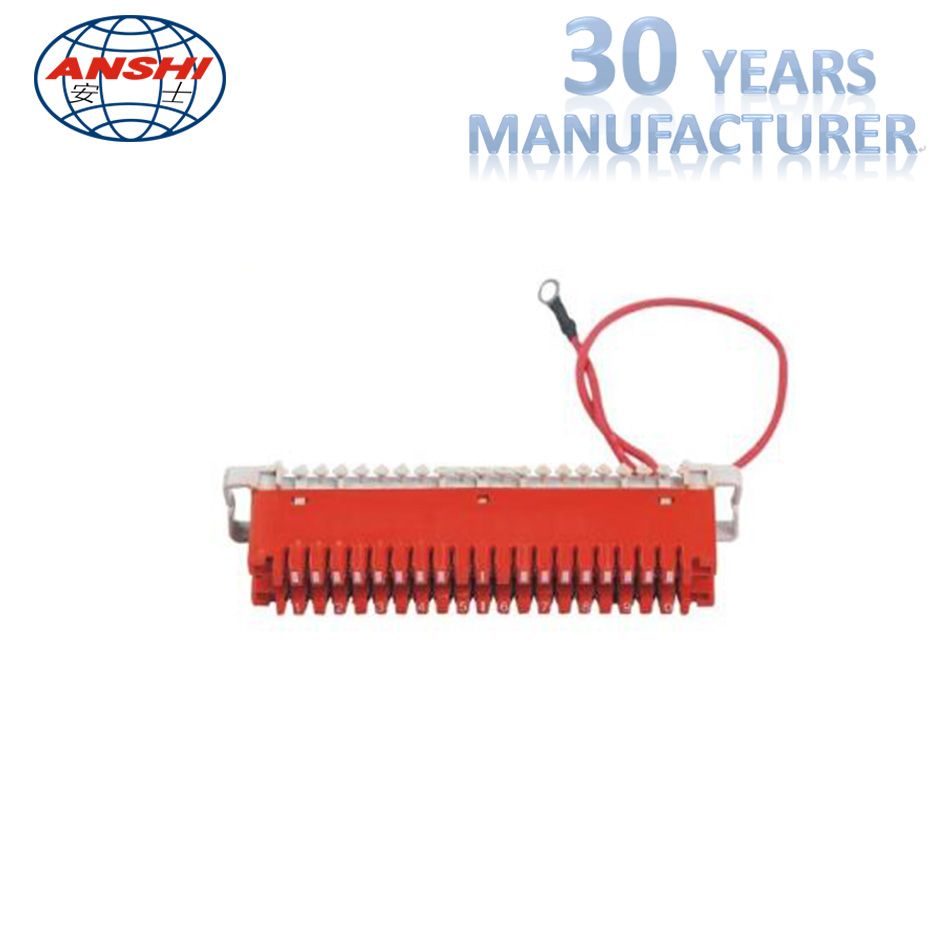

XL-011
 Connection or Disconnection Modules of 10 Pairs, 8 Pairs and 5 Pairs

Key Specifications/Special Feature:
 *Size (H x W x D): 122.5±2mm x 21.5mm x 40.5mm (10 Pairs);
 *Environment condition: -5-40 degree Celsius ;Relative humidity  ＜85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;
 *Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N ;
 *The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard ;
 *Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disconnection connections ;
 *Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition ;
 *Intermediate resistance: no more than 3m ohm under standard examination condition ;
 *Dielectric strength: according to industry standard
 *Specification: 5 pairs, 8 pairs and 10 pairs
 *Type: every specification has connection or disconnection types
 *Life: durability 200 cycles
*Apply lead: Single plastic Insulation copper lead , core lead Diameter 0.4mm—0.6mm

Outlook measurement(10 pairs):
