The  patch panel system helps  maintaining all of the innovative features that have made  unique in the industry  Its unique modularity and patch cord  management system continue to provide unmatched flexibility to MIS managers  with the ability to mix and match copper and fiber media in the same panel

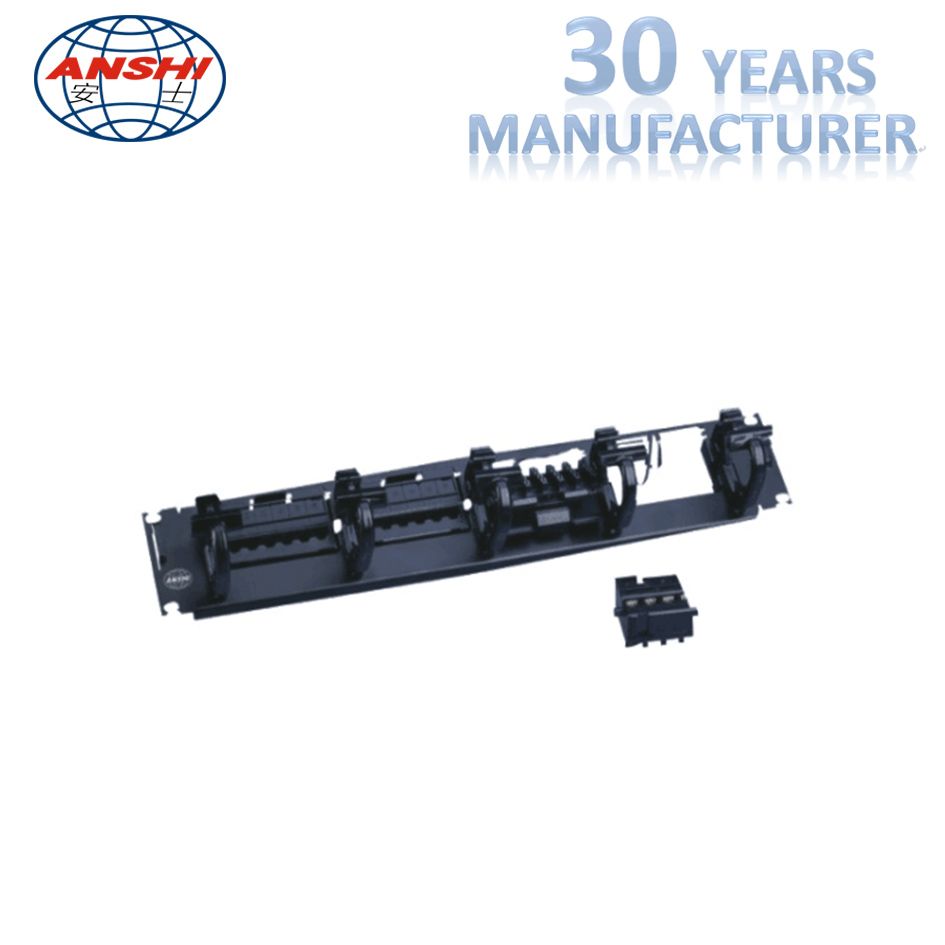

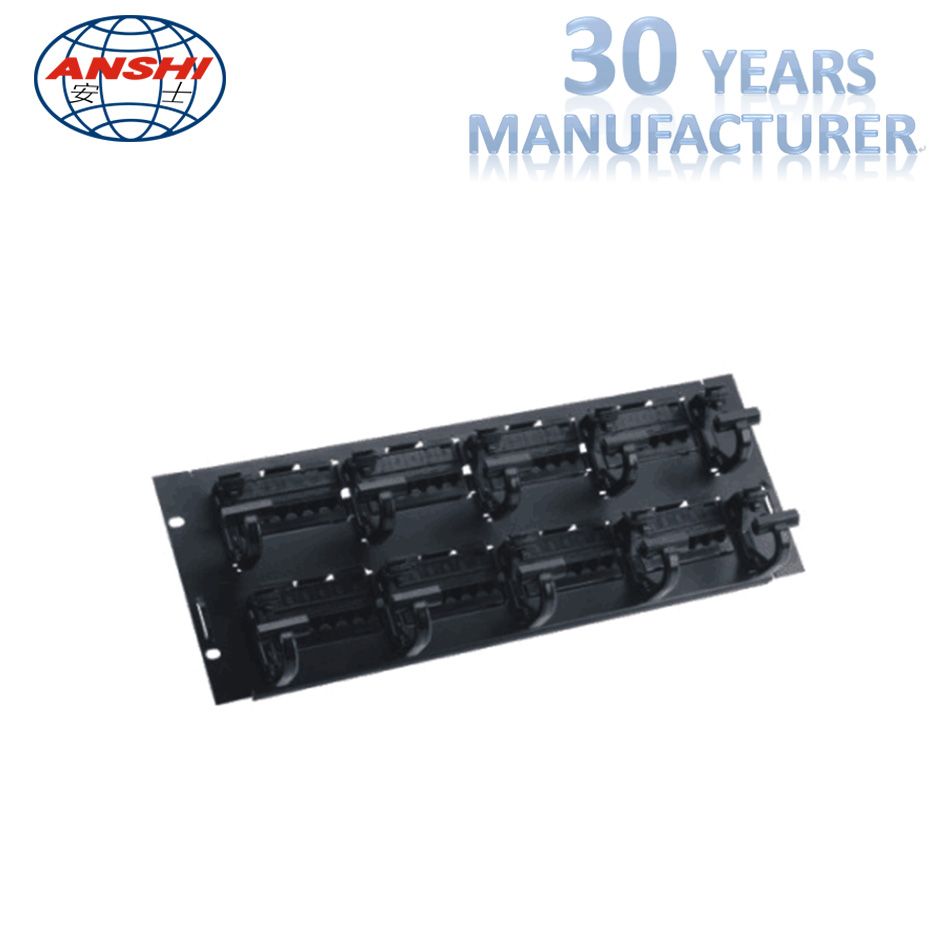

The  19-inch rack mountable patch panel is designed to  accept 4 or 8 six-port Distribution Modules (DM) which can be  rotated forward, allowing front access to the   0 type IDC  terminals for easy cable termination  Built-in horizontal patch  cord management brackets provide support for patch cords  as well as a holder for the DM modules during installation

1.With Cat5e keystone modules used for 19"cabinet ,Complete metalation and reed construction, modularization design
2.Contact pin: phosphor bronze and gold plating (20-50uinch), mating durability not less than 750 cycles
3.Anti-burn performance: plastic part made from PPO and PC, meeting the international standard
4.Intermediate resistance: no more than 2.5m ohm in normal atmosphere pressure (not including bulk resistor)
5.Insulated resistance: no less than 1,000M ohm in normal atmosphere pressure
6.Theintensity of anti-currency: DC 1,000V (AC,700V) No puncture andflash-over phenomenon in one minute. Accord with industry standard
7.Label: clear label to ensure easy to manage
8.Type: unshielded ,24,48ports.
9.Standard: designed by international ISO/IEC11801 and TIA/EIA568
