AS-OLT-04A

Product Name:

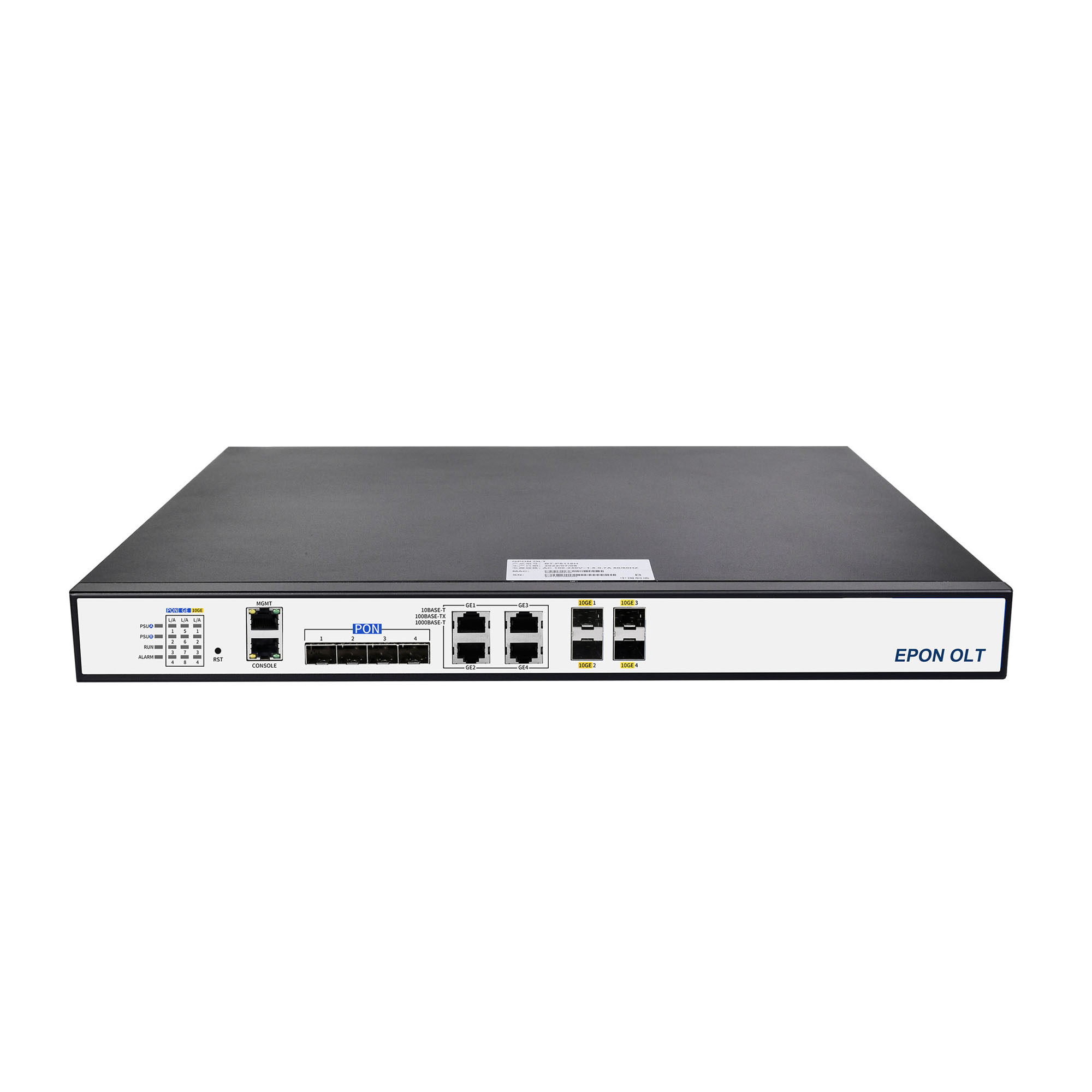

AS-OLT-04A GPON OLT

Product Overview

AS-OLT-04A is EPON OLT series product, 19-inch 1U height rack-mounted, featuring small size, convenience and flflexibility, easy deployment, and high performance. Easy installation and maintenance,saving space.

AS-OLT-04A EPON OLT provides 4 standard EPON PON ports ; 4 uplink GE Ethernet RJ45 ports; 4 10GE SFP+optical ports.Supports 1:64 split ratio,can access 256 ONU users at the same time. Support difffferent types of ONU hybrid networking, suitable for triple play,Video network, corporate LAN, and Internet of Things scenarios. Provide perfect, intelligent, powerful, advanced and professional solutions for FTTH/FTTB/FTTO projects.

Product Specifications
EPON interface	4 x EPON (1.25/1.25 Gbps)
Uplink Optical Interface	4 * 10GE SFP+
Uplink Ethernet Interface	4 * GE RJ45
EPON	IEEE 802.3ah EPON
Console	RJ45 EIA/TIA-232 Console management port
MGMT	100BASE-T out-band management port
Switching Capacity	103Gbps
Package transmit rate (IPv4/IPv6)	125Mpps
Spaging ratio	1: 64
Maximum ONU quantity	256 ONT
Power Adaptor	AC Input::100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V
Redundancy Design	Pluggable double power supply, double AC, double DC and AC+DC
Consumption	＜46 W
Storage	temperature -10 to 70°C, rel. humidity 10‒90% (non-condensing)
Operation	temperature -5 to 50°C, rel. humidity 10‒90% (non-condensing)
Dimensions	442mm×227mm× 44mm(W * D *H)
Weight	＜ 3.0KG

FOB Reference Price:
