1GE+1FE+2.4G WIFI+CATV(external antennas） -

ANSHI-213xr

Product Name:

1GE+1FE+2.4G WIFI+CATV(external antennas）

♦ Support EPON/GPON mode and switch mode automatically
♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
♦ Support DDSN, ALG, DMZ and UPNP
♦ Support CATV interface for Video Service

FOB Reference Price:

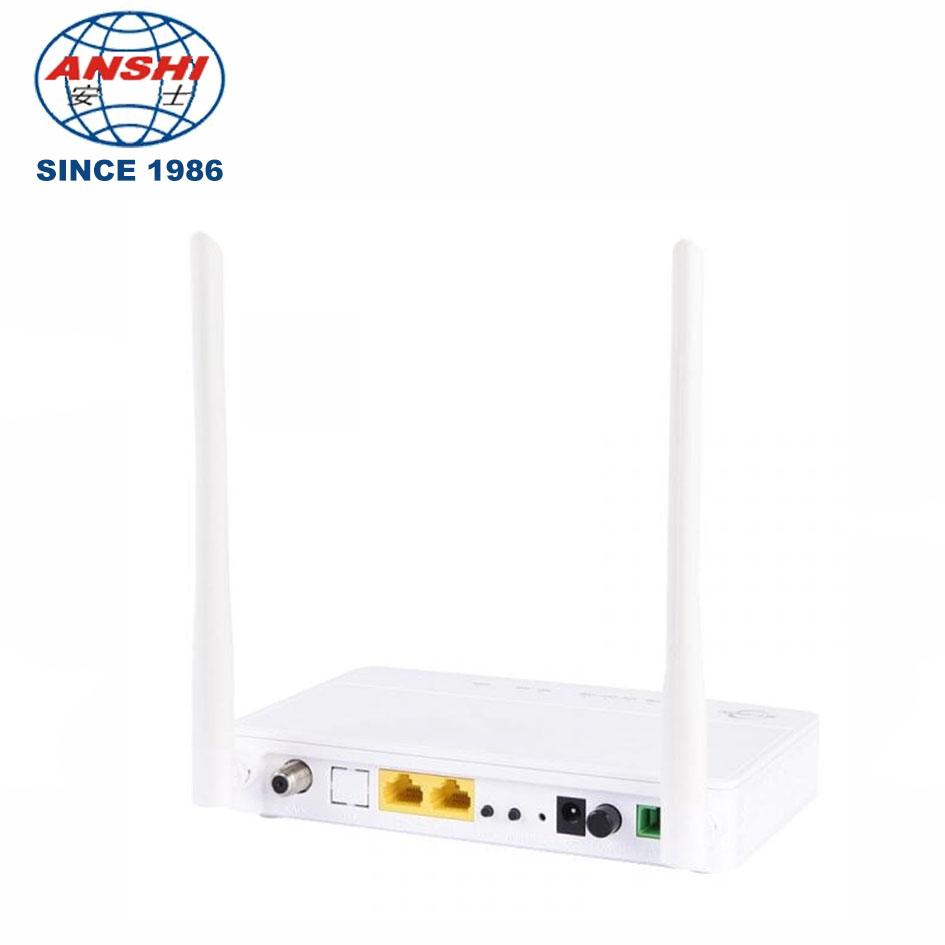

ANSHI-213XR is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators. ANSHI-213XR is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.

1GE+1FE+2.4G WIFI+CATV(external antennas）
