Feature:

1. Utilizes advanced PLC (Planar Lightwave Circuit) chips, ensuring excellent channel uniformity and uniform optical power distribution.

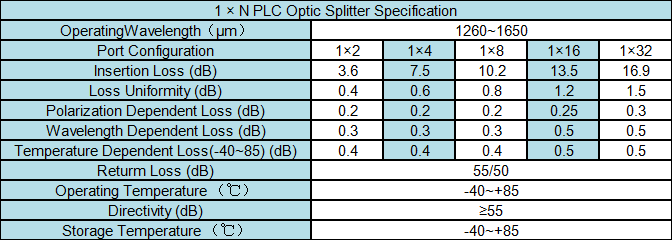

2. Ultra-low insertion loss and low polarization mode delay (PDL) minimize signal attenuation and enable stable long-distance transmission.

3. Wide operating wavelength range of 1260–1650 nm, compatible with GPON, EPON, and CATV systems.

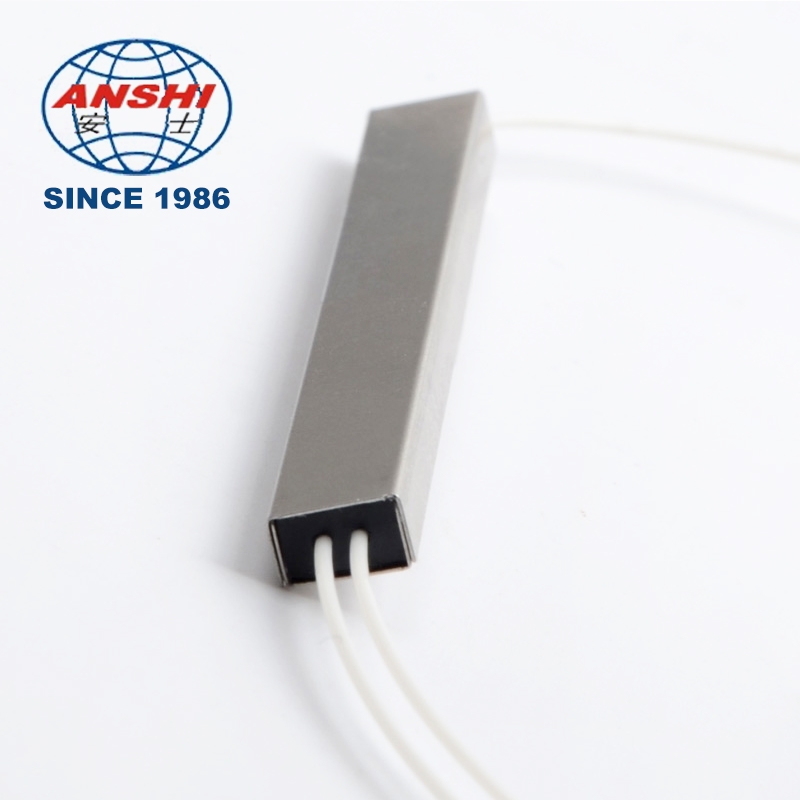

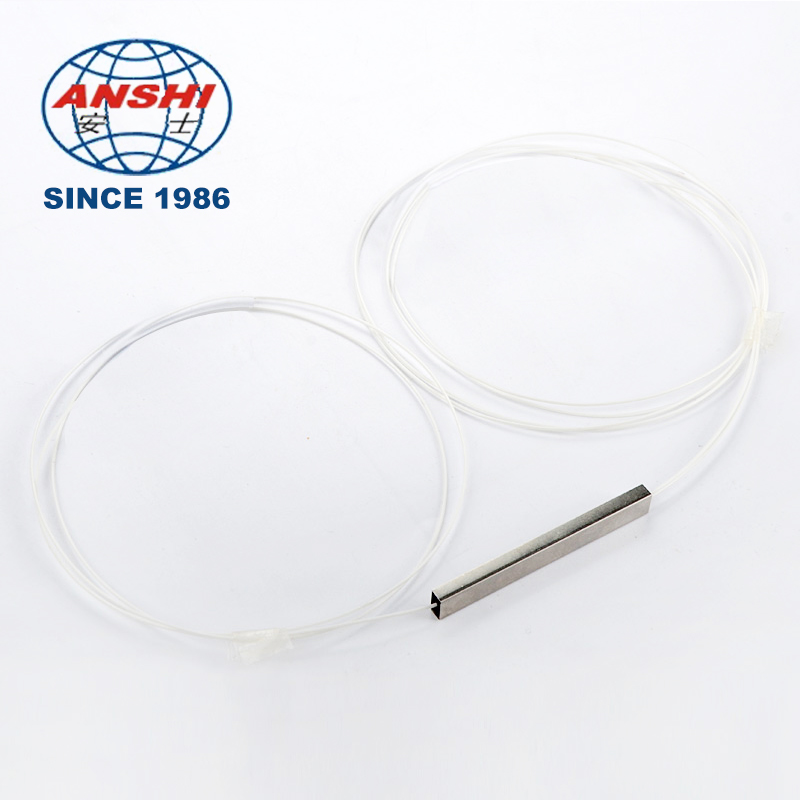

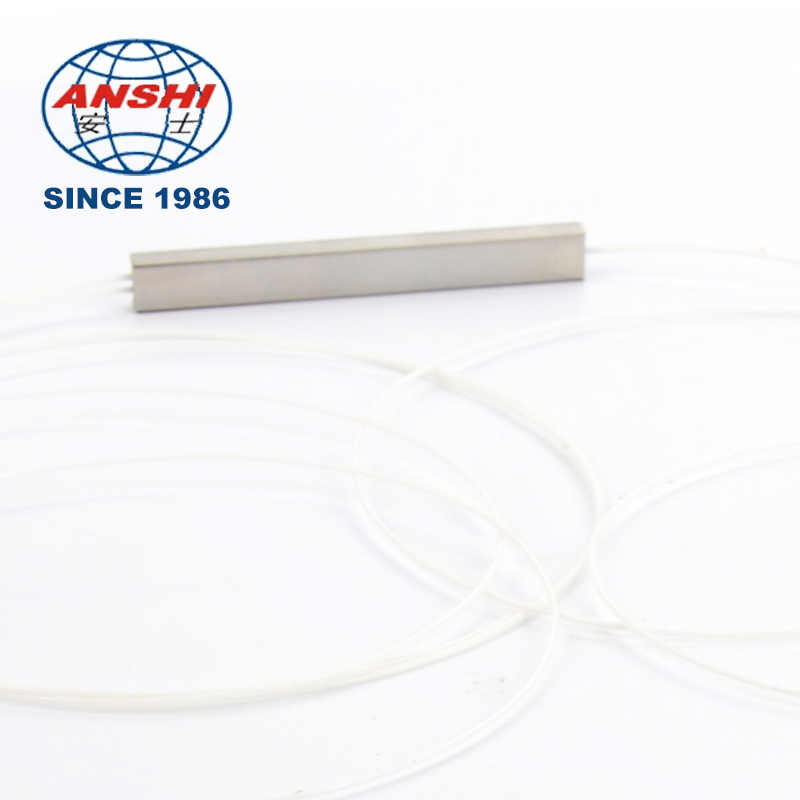

4. Multiple housing options available: mini-tube, ABS module, LGX tape, and 1U rack-mount

5. Optional SC/LC/FC/ST connectors with UPC/APC end faces; plug-and-play design reduces installation labor

6. Stable performance across a wide temperature range with minimal low-temperature drift for indoor and outdoor projects

7. Integrated sealed packaging, resistant to vibration and tensile force, with built-in aramid yarn to prevent fiber breakage

8. Complete range of configurations: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64; supports custom fiber lengths and OEM branding

9. 100% factory optical testing, CE & RoHS certified, suitable for global telecommunications projects.
