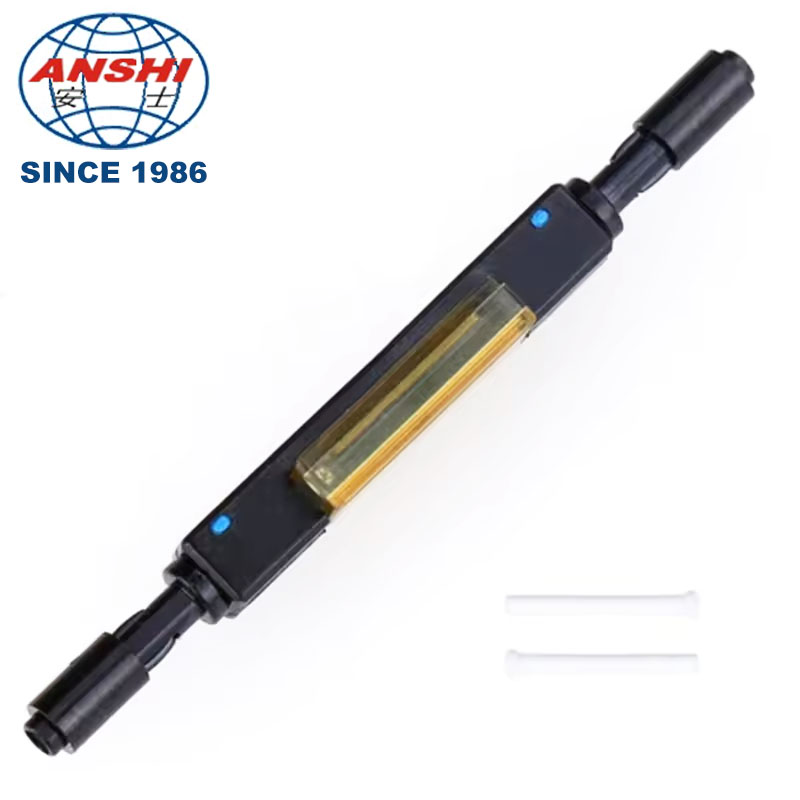

Products Description

1, metal V groove design, optical fiber butt precision is high, technical indicators are excellent.
2, the core structure: the box structure design, good sealing performance, matching fluid is not easy to lose, weather resistance is strong;
3, applicable optical cable: suitable for any combination of 0.25mm optical fiber and 0.9mm optical fiber.
4, simple operation, fast construction speed, high success rate of installation, long life cycle, simple and convenient maintenance later.
5, application: for FTTH engineering and optical cable repair.
 Product technical indicators:
Project: unit parameters
Insertion loss: dB < 0.20
Echo loss: dB > 40
Tensile strength: N/2min > 10
Working temperature: -40 ~ +85
Repeat assembly: times greater than 10 Applicable optical cable: mm 0.25mm 0.9mm optical fiber
Product size: 45.3 x 4.6 x 4mm
