Specifications

CAT3 KEYSTONE JACK

Toolless Keystone jack

Cat.3 Unshielded Keystone jack

Telephone Jack Module

Toolless Keystone Jack

Full Technical Specifications:

Transport number,simulative voice,data and video signal in network

Suitable for the adhibition of all grade E and D respectively

Based on EN50173; ISO 11801 second edition or EIA/TIA568B.2-1 cat5e/cat6 standard

Applicable to all cat5e/cat6

Module part is fitted with shield, protecting inner 1DC contact from irregular working in rugged environment

1)Available colors eight

2)Highly resistance and inflaming retarding plastics material, Grade UL94-0,Snap-in handy style

3)Connection strap to adopt gold plate,alloy of Cu and Be,IDC to use the alloy of Cu and P

4)Keystone shield crust to apply the alloy of Ni and Cu

5)Name T568A/568B color code on module to prevent operation form needless error

6) 6)Keystone jack sharp is shortened to the utmost limit,reduing the space in bottom box and patch panel, lowering attenuation and interference largely

Mechanical property

Times of repetitive use:≥800

Termipoint life:≥200

Wiring harness diameter melting curve:0.4mm(AWG26)-0.65(AWG22)

Stand wire(seven):AWG26-27

Suitable for reusable solid wire of diameter AWG 22-24(the same contact part or largish corss region)

Insulation diameter:0.7mm-1.4mm(1.6mm)

Temperature interval:-40°C-70°C(storing)

                     -10°C-60°C(installation)

                     -10°C-60°C(working)

Toolless Keystone jack Module

· Housing : high temperature thermoplastic

· Contract : phosphor bronze , phosphor bronze with 6 to 50 u " gold plate .

· Available in Cat 3,T568 A ,T568 B wiring .meeting every cabling requirement

· Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm

· Easy to be terminated Low attenuation loss and high return loss .

· Available color : blank , white ,blue ,yellow ,milk white .

· High reliability and superior performance .

· Use the first xx to specify the color :

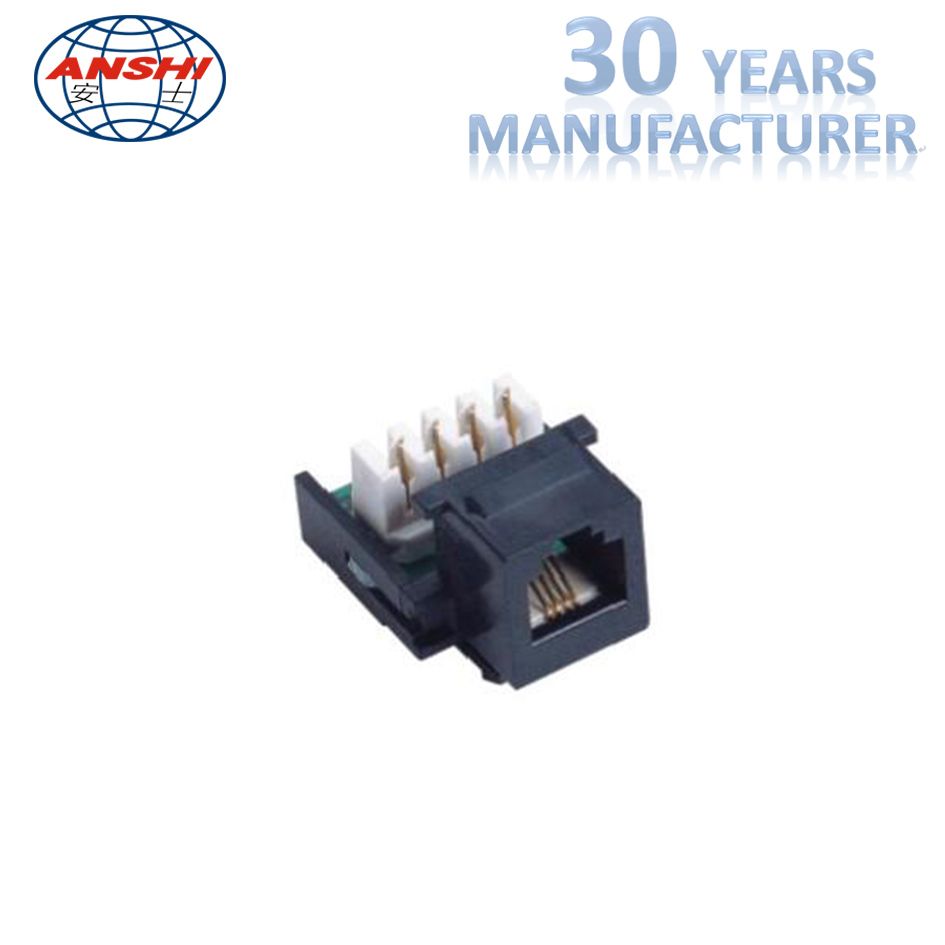

CAT3 KEYSTONE RJ11 TELEPHONE JACK
