300 Pairs Cross Connection Cabinet (SMC) Wall Mount -

XL-031C-300

Product Name:

300 Pairs Cross Connection Cabinet (SMC) Wall Mount

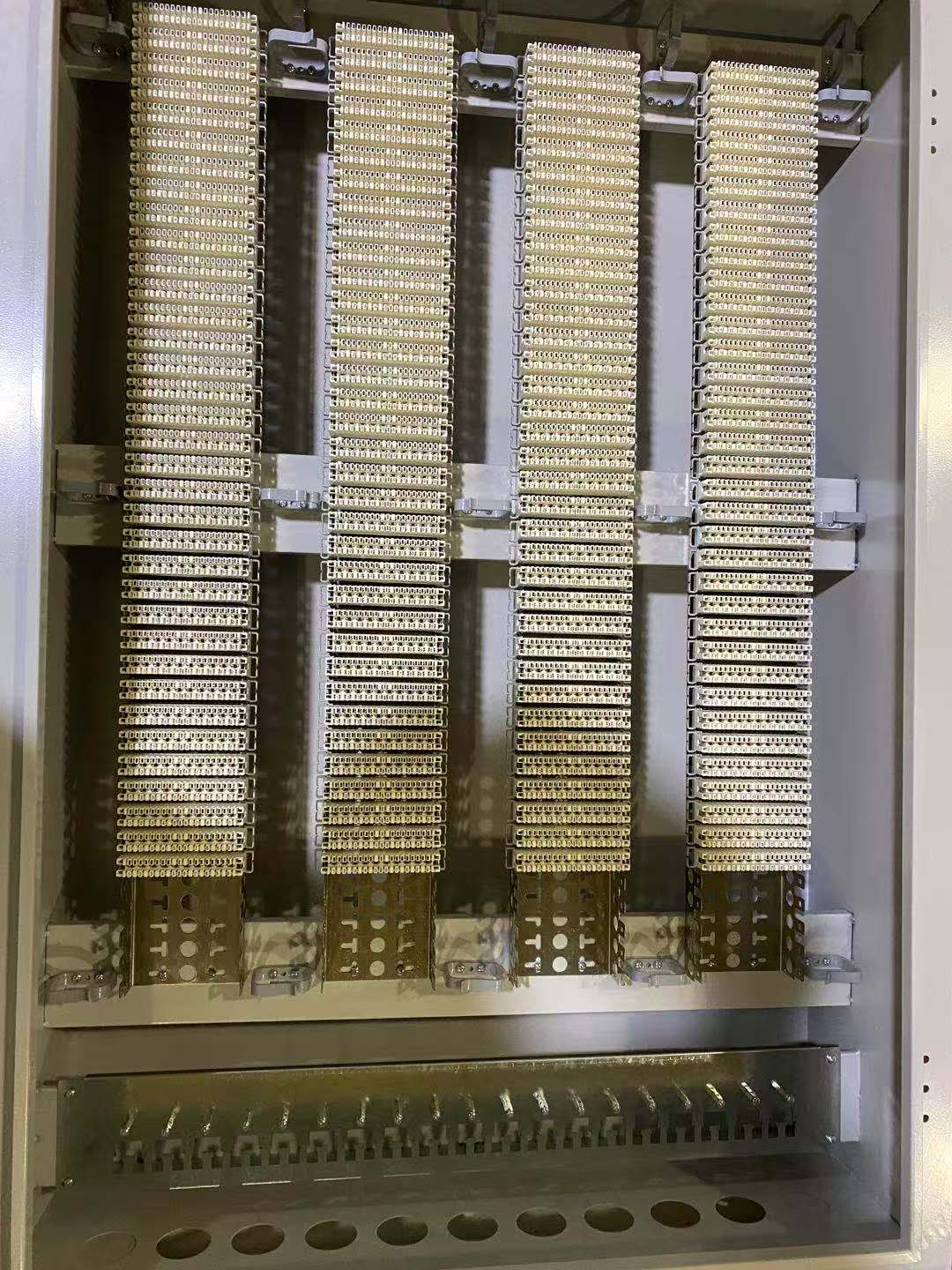

Cross Connection Cabinet (CCC) is composed of cabinet, metal frame, terminal module, accessories, etc., which is applicable to small-capacity telephone exchange, LAN, program-controlled switchboard equipment and cables out of the follow-up and distribution, but also can serve as a cable with the cable between the transfer and testing (Intermediate Distribution Box (Cabinet)). 10 pairs of cards used in wiring access module into the next round of cards can not be broken reed for the style, into the round is always connected between the state, good gas-tight and waterproof performance, with a follow-up cable, termination function.

Item No.	Dimension (H×W×D) mm	Capacity（Pairs）
XL-031C-150 Wall Mount	780×550×310mm	150
XL-031C-200 Wall Mount	780×550×310mm	200
XL-031C-300 Wall Mount	780×550×310mm	300
XL-031C-1200 Floor Standing	1450×750×320	1200
XL-031C-2400 Floor Standing	1450×750×540	2400
1)Body & Plinth can remove. 2)Plinth Height is 350mm 3) Wall Mount without bottom Plinth

FOB Reference Price:

300 Pairs Cross Connection Cabinet (SMC) Wall Mount
