Features:
1) Contact resistance: <2.5mΩ
2) Contact resistance of linker and lead: <2.5mΩ
3) Insulation resistance: >1,000mΩ
4) Withstand test voltage: DC 1,000V
5) Times of repetitive use: ≥750
6) Designed and manufactured in accordance with ISO9001 / IEC11801 standards
7) Design exceeds normal requirements
8) Colored component combinations for convenience of identification and network
management
9) Many other message modules available for wiring arrangements
10) Compatible with AMP keystone
11) Colors available: white, yellow, ivory, red, black, blue
12) Designed and manufactured in accordance with ISO9001 / IEC11801 standards

1) Meets or exceeds TIA/EIA 568 A/B wiring specification
2) Pin contactors are plated with gold over nickel, be of perfect
transmission perforation
3) Plug insertion life: >750 times
4) IDC material: PC engineering plastic
5) IDC connector is phosphor bronze
6) Available in any color

Meets FCC parts 68
ANS, TIA, EIA-568B
ISO, IEC 11801
ETL verified EIA/TIA T568B: Cat. 5e channel link
Transmission performance
Physicals:
IDC connector accept 22-26 AWG solid wire
Jack wiring: 50-micron inch gold plate over 100-micron inch nickel
Housing: high impact flame retardant plastic UL94V-0 rated
IDC connector suitable for 110 punch down and Krone tool
Mechanical:
Plug insertion life: 750cycle/minute
Plug retention force: 30lbs/minute
Electrical:
Current rating: 1.5A
Insulation resistance: 500M Ohms minimum
Contact resistance: 20 Milli-ohms maximum
DC resistance: 0.1 Ohms maximum Data transmission rates up to 250Mbps

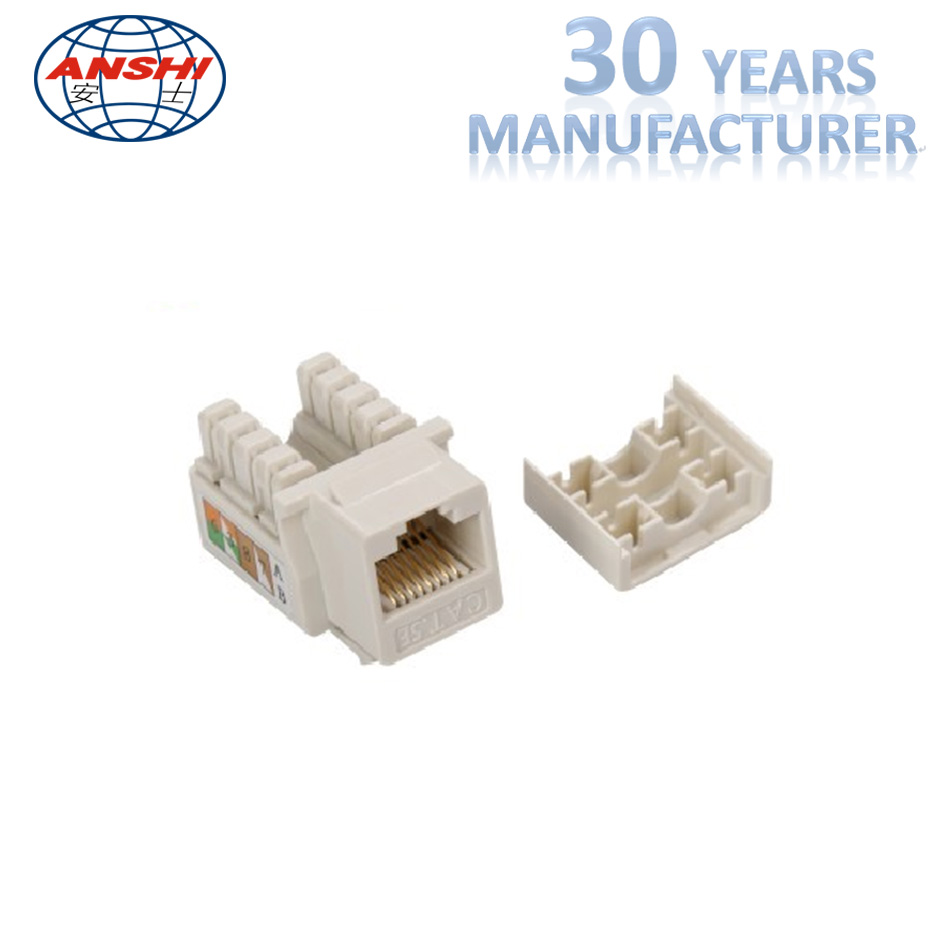

The Computer Cable Store's Category 5e (CAT5e) 180Degree Keystone Jacks are available
in a variety of five different colors intended to assist in the task of identification.
The design of our CAT5e Keystone Jacks provide excellent performance
that meets or exceeds the industry standard TIA/EIA 568-B. The Computer Cable
Store's Category 5e keystone jacks are designed to work with a wide variety of the
Computer Cable Store's Blank Snap-In Patch Panels and Snap-In Wall Plates.

Type: CAT5e Snap-in Keystone Jack (8P8C)
3 Dust Covers & 1 Strain Relief Cap Inlcuded
Termination: 110 Style 180 Degree punch down for 22-26 AWG solid wire
Use With: Any Computer Cable Store Blank Wall Plate or Patch Panel
T568A & T568B wiring compatible
UL listed
