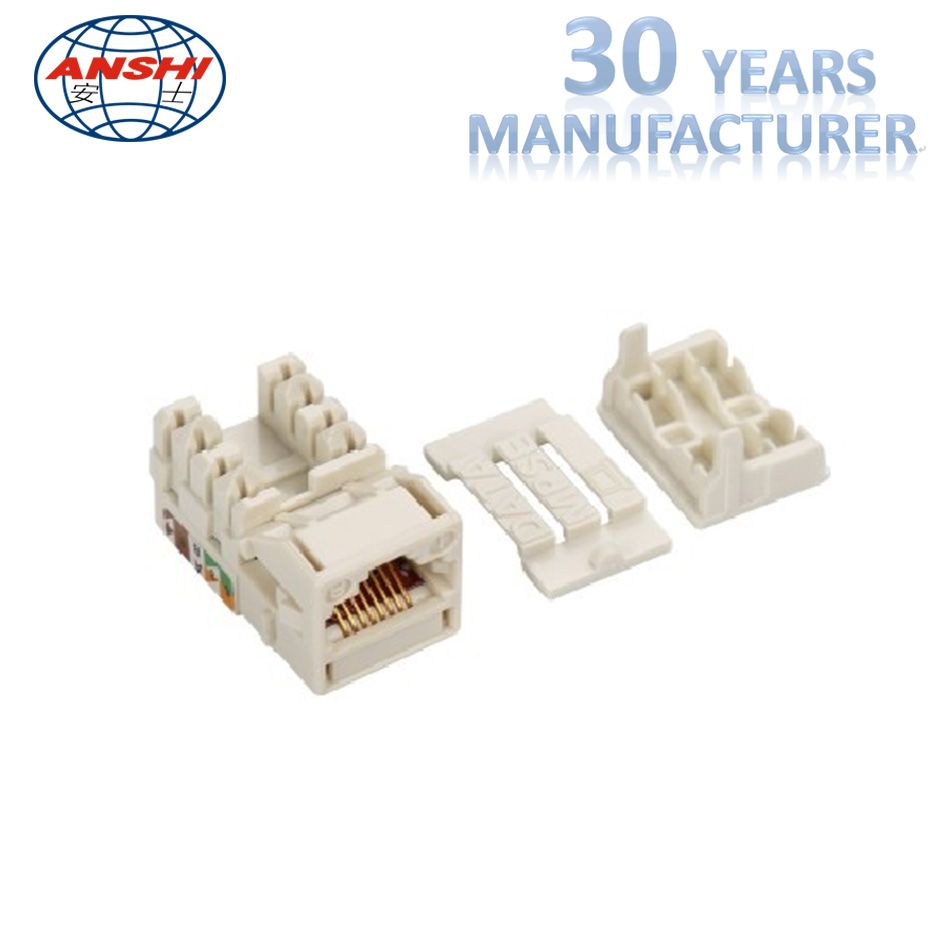

ANSHI Cat6 Keystone Jack

1) Meets or exceeds TIA/EIA 568 A/B wiring specification

2) Pin contactors are plated with gold over nickel, be of perfect

transmission perforation

3) Plug insertion life: >750 times

4) IDC material: PC engineering plastic

5) IDC connector is phosphor bronze

6) Available in any color

Meets FCC parts 68

ANS, TIA, EIA-568B

ISO, IEC 11801

ETL verified EIA/TIA T568B: Cat. 5e channel link

Transmission performance

Physicals:

IDC connector accept 22-26 AWG solid wire

Jack wiring: 50-micron inch gold plate over 100-micron inch nickel

Housing: high impact flame retardant plastic UL94V-0 rated

IDC connector suitable for 110 punch down and Krone tool

Mechanical:

Plug insertion life: 750cycle/minute

Plug retention force: 30lbs/minute

Electrical:

Current rating: 1.5A

Insulation resistance: 500M Ohms minimum

Contact resistance: 20 Milli-ohms maximum

DC resistance: 0.1 Ohms maximum Data transmission rates up to 250Mbps

The Computer Cable Store's Category 5e (CAT5e) 180Degree Keystone Jacks are available

in a variety of five different colors intended to assist in the task of identification.

The design of our CAT5e Keystone Jacks provide excellent performance

that meets or exceeds the industry standard TIA/EIA 568-B. The Computer Cable

Store's Category 5e keystone jacks are designed to work with a wide variety of the

Computer Cable Store's Blank Snap-In Patch Panels and Snap-In Wall Plates.

Type: CAT5e Snap-in Keystone Jack (8P8C)

3 Dust Covers & 1 Strain Relief Cap Inlcuded

Termination: 110 Style 180 Degree punch down for 22-26 AWG solid wire

Use With: Any Computer Cable Store Blank Wall Plate or Patch Panel

T568A & T568B wiring compatible

UL listed
