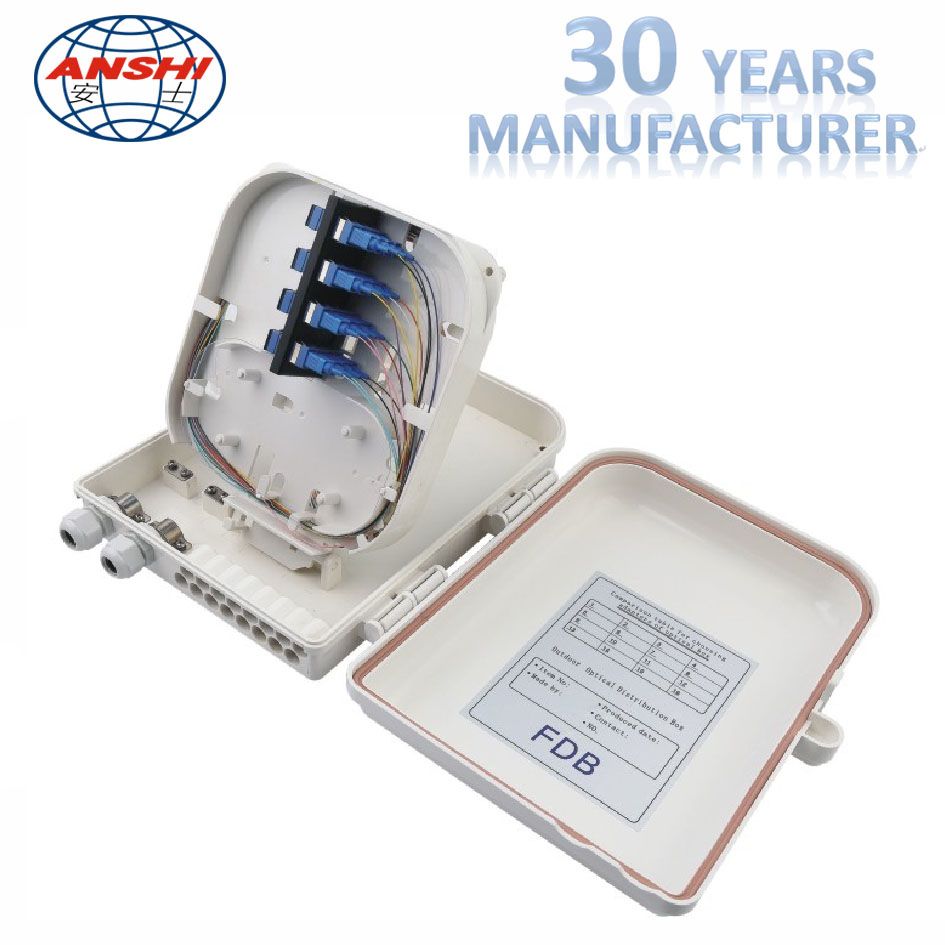

This terminal box terminates up to 2 fiber optic cables, offers spaces for splitters and up to 32 fusions, allocates 16 SC adapters and working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.

 Accommodates splitters and up to 16 SC simplex adapters £¬Max allowance for entry cables: max diameter 15mm, up to 2 cables£¬Max allowance for exit cables: up to 16 simplex cables

Descriptions:

 ABS with PC material used ensures the body strong and light.

 Water-proof  design for outdoor uses. Protection Level: IP55.

 Easy installations: Ready for wall mount

 Adapter slots used – No screws and tools needed for installing adapters.

 Ready for splitters: designed space for adding splitters.

 Space saving! Double-layer design for easier installation and maintenances:

              Lower layer for splitters and over length fiber storage.

              Upper layer for splicing, cross-connecting and fiber distribution.

 Cable fixing units provided for fixing the outdoor optical cable.

 Accommodates both cable glands as well as tie-wraps

 Lock provided for extra security.

 Dimensions and Capability:

 Dimensions: 300mm x 223.5mm x 92mm (H x W x D)

 Weight: 1.5KG

Operation conditions:

 Temperatures: -40¡æ -- 60¡æ

 Humidity: 93% at 40¡æ

 Air Pressure: 62kPa – 101kPa
