| Type: |
AS-ODF-ZDH-12(24) |
| Product Name: |

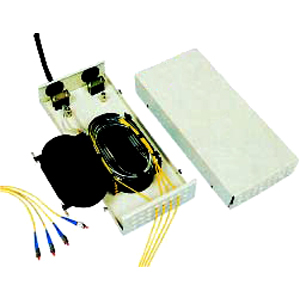

Fusion unit box |
| Origin: |
CIXI ANSHI |
| Brand Name: |
|
| Material: |
|
| size: |
|
| Safety/Quality: |
ISO9001 |
|
 |
|
|
|
| |
|
| |
|
| |
1.Box body is made of metal materials, it looks nice in shape and its operation is convenient,
2.Designed by full modulazation, It is the combination of three functions, namely optical fusion, store and distribution;
3.Fusion tray can be turned over, also can be pulled out to operate outside the box, the expansion of capacity is easy;
4.Convenient to atemper, for it is sufficient to consider the fastness, the ground, to melt or connect the redundancy cable.
5.Various cabinets are available
6.Working temperature: -5~40,Relative humidity: ≤85%(30)Air pressure: 70~106Kpa;
7.Standard working wavelength: 850nm,1310nm ,1550nm
8.Resistance to voltage between high-voltage protection ground and frame: ≥3KV(DC)/1min no puncture or arc.
9.Insulation resistance between high-voltage protection ground and frame: ≥1000MΩ/500V(DC)
|
| |
|
|
|
 |
|
