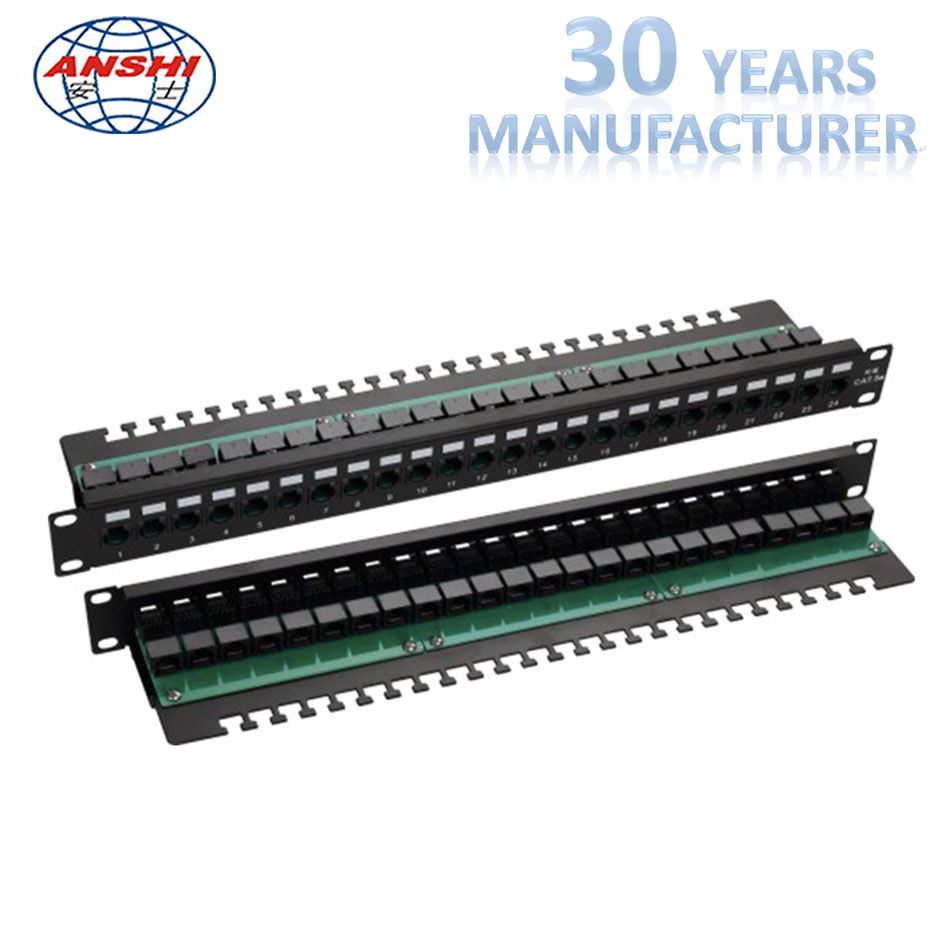

1.With Cat5e keystone modules used for 19"cabinet , modularization design ,
2.Keystone jack to keystone jack, Pass-thru patch panel.
3.Contact pin: phosphor bronze and gold plating (20-50uinch), mating durability not less than 750 cycles;                                                     4.Anti-burn performance: plastic part made from PPO and PC, meeting the international standard ;                                                         5.Intermediate resistance: no more than 2.5m ohm in normal atmosphere pressure (not including bulk resistor);
6.Insulated resistance: no less than 1,000M ohm in normal atmosphere pressure
7.The intensity of anti-currency: DC 1,000V (AC,700V);No puncture and flash-over phenomenon in one minute. Accord with industry standard;                                                                                                                                                                                                                                  8.Label: clear label to ensure easy to manage;
9.Standard: designed by international ISO/IEC11801 and TIA/EIA568;                                                                                                                               10.Adopt special IDC,suitable for use both LSA insertion tools and 110 type impact tools,180 wire termination.
